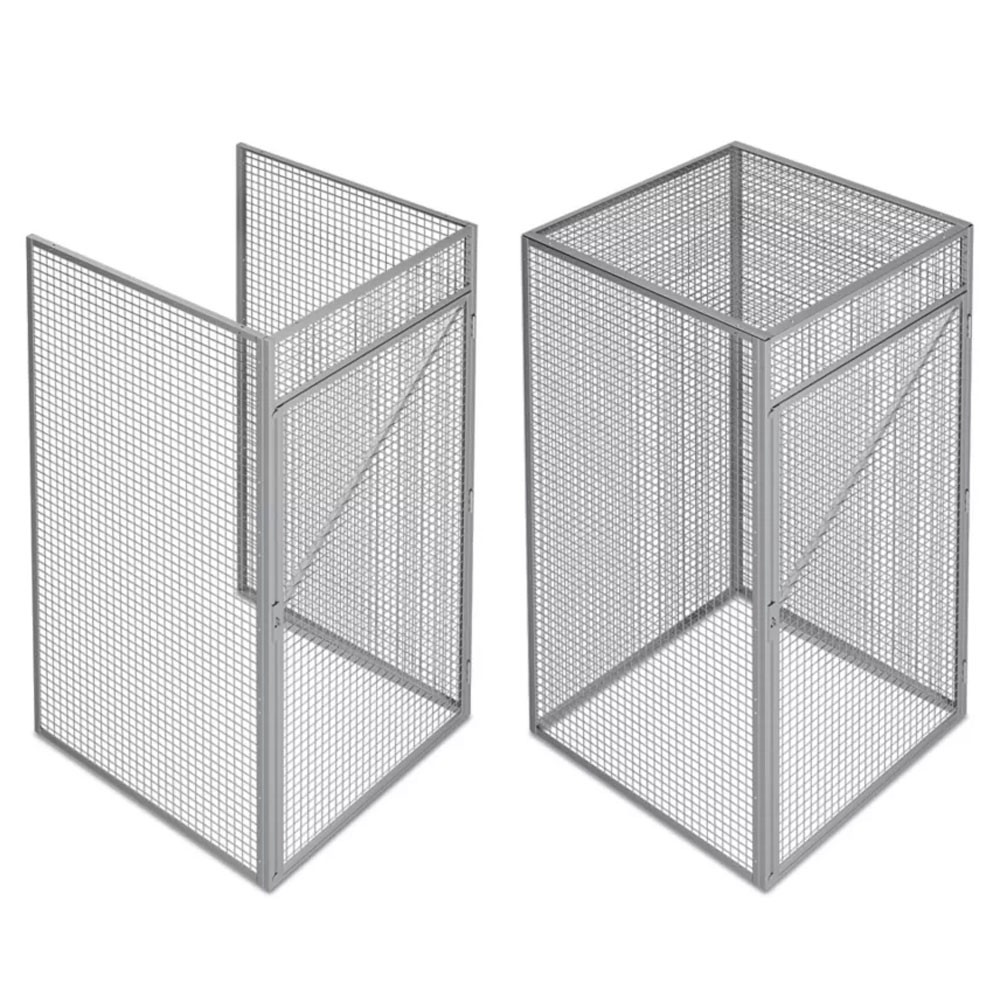

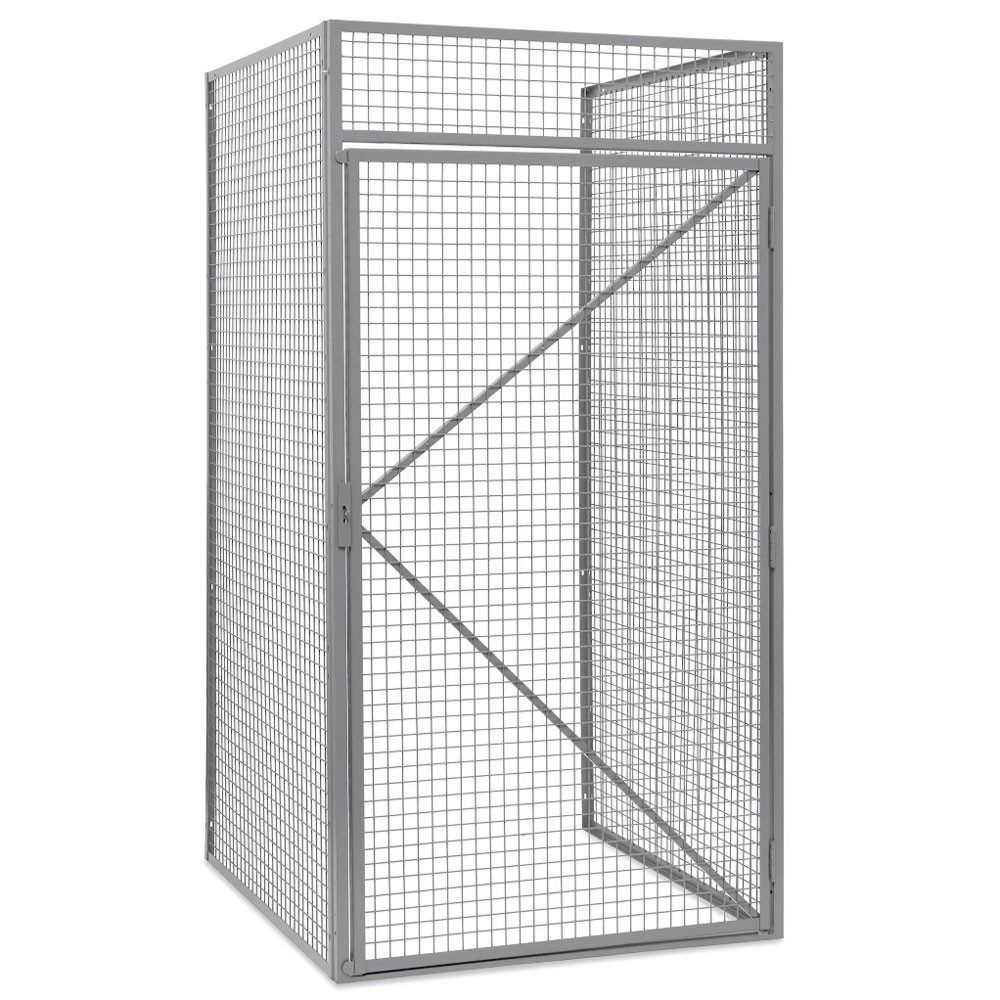

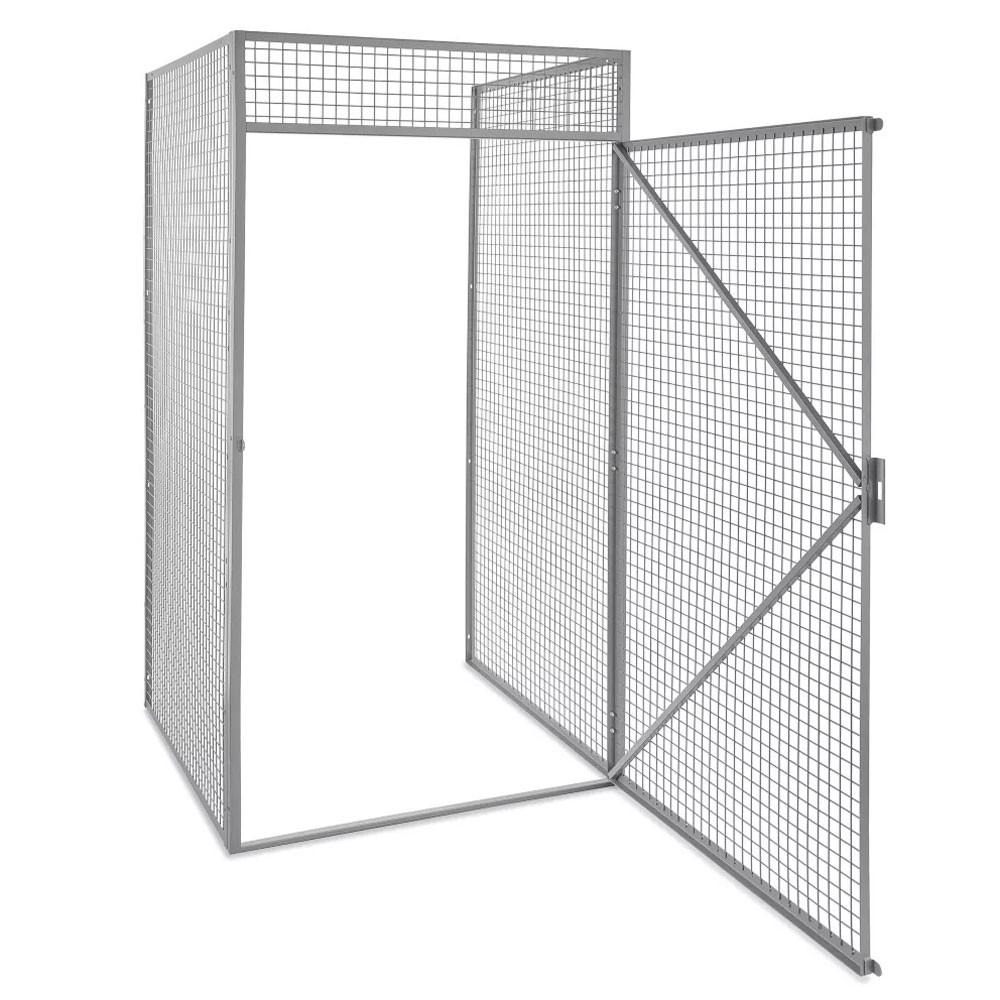

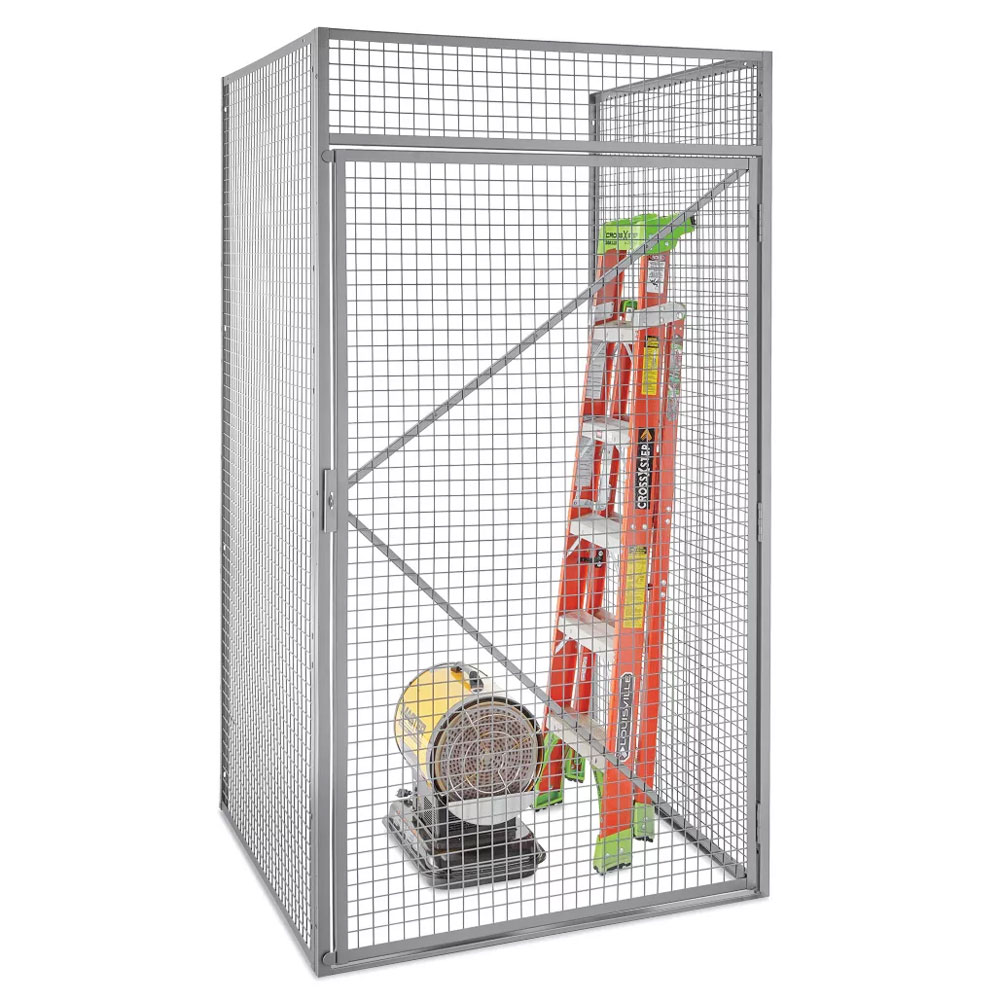

Single Tier Wire Mesh storage Lockers

Wire mesh storage locker is a flexible, modular and highly secure storage product. It is often used to meet the temporary or permanent storage needs of apartments, hospitals, schools and shopping malls, etc.

The panel is welded with galvanized steel wires, which has good anti-corrosion and structural stability, and can be used both indoors and outdoors. Users can flexibly install storage locker according to the space, so as to maximize the use of space. Additional, its modular structure makes assembly more convenient. Simply fix the panels with screws and nuts within several minutes, you'll get the storage locker right now.

Size

* Wire Diameter (inch): 10 gauge × 2" x 2", 4 gauge × 1.5" × 3", 12 gauge × 1" × 1", 10 gauge × 1.25" × 2.5",   ( expanded metal mesh is available.)

* Panel Height (inch): 90", 79.5", 84"
* Panel Width (inch): 24", 30", 36", 48", 60", 96"
* Panel Depth (inch): 18", 24", 30", 36", 48", 60"
* Angle Iron (inch): 14 gauge × 1.25" × 1.25", 14 gauge × 1.5" × 1.5"
* Fixing Accessories (inch): Wire mesh panels are fixed to the floor or wall with 1/4" × 1 1/4" drive nails. Use 1/4" × 3/4"
  bolts and nuts to connect all the panels.

Other Options

* Back Panel: If users need to connect multiple lockers together, or the lockers are far away from the wall, they can add a   back panel.
* Ceiling: If users want to improve safety, or the lockers are used outdoors, they can add a ceiling. It is recommended to
  reserve 3-5 inches between ceiling and roof.
* Shelves: If users want to configure storage space more flexibly and increase capacity, they can add shelves.

Installation

The installation of wire mesh storage locker is simple. When users receive the goods, just use prepared bolts, nuts and drive nails to connect panels and doors.
