Machine Safety Fence De Fence Mesh Panel

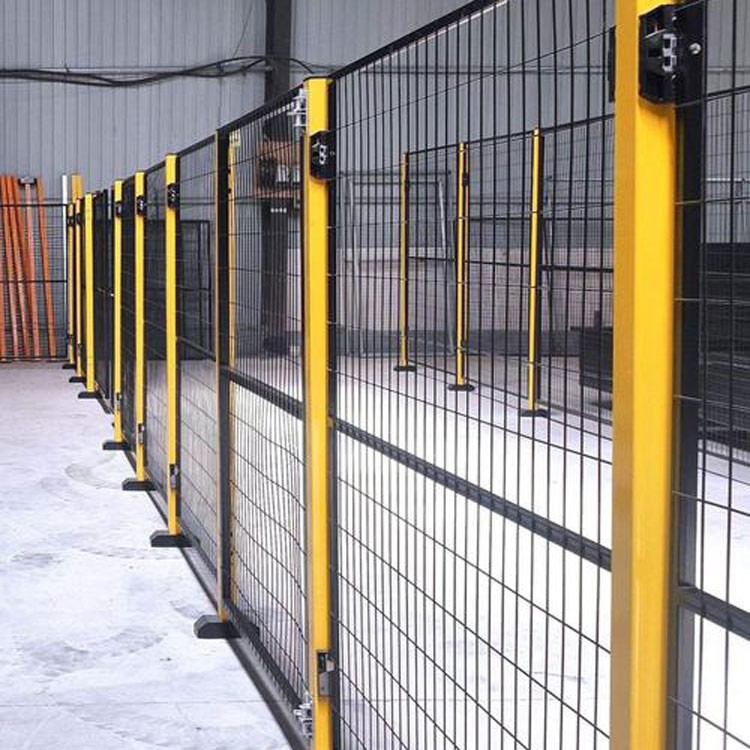

Machine Safety Fence is a steel safety guarding system designed for industrial environments with robotic systems or automated machinery.
Machine Safety Fence De Fence Mesh Panel
Machine Safety Fence is a steel safety guarding system designed for industrial environments with robotic systems or automated machinery.
Built to be easy to use, versatile, and adaptable, they suit a wide range of applications and easily configure to requirements.

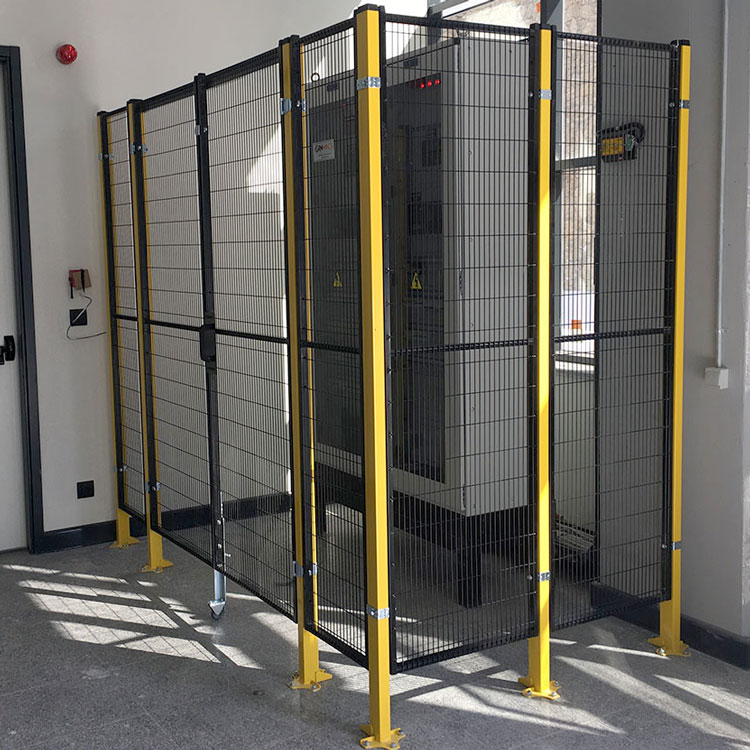

The multi-purpose system not only protects and directs both traffic and people away from hazards or harm, but it also safeguards valuable gear or expensive machinery.
This means it suits applications like pedestrian management, forklift separation, machinery guarding and zoning of workspaces.

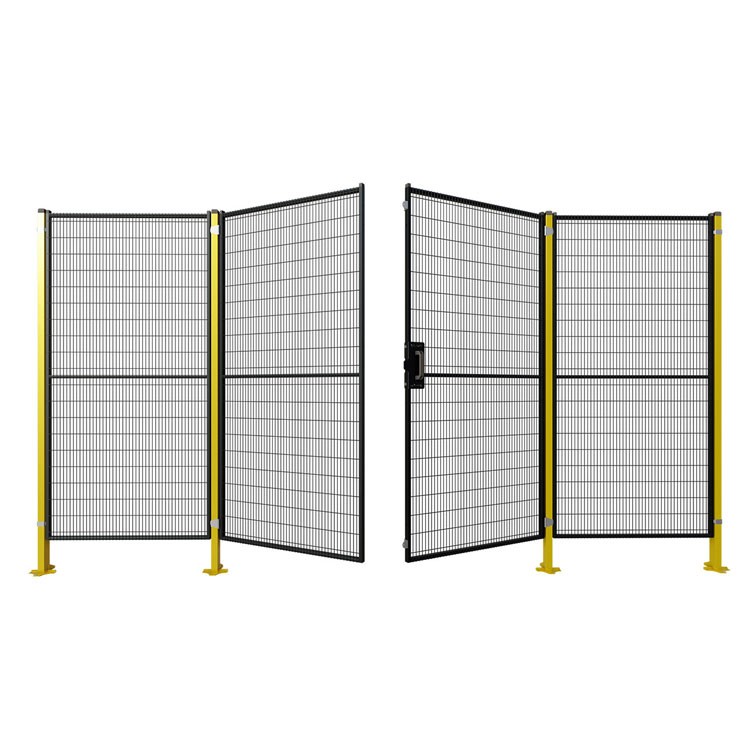

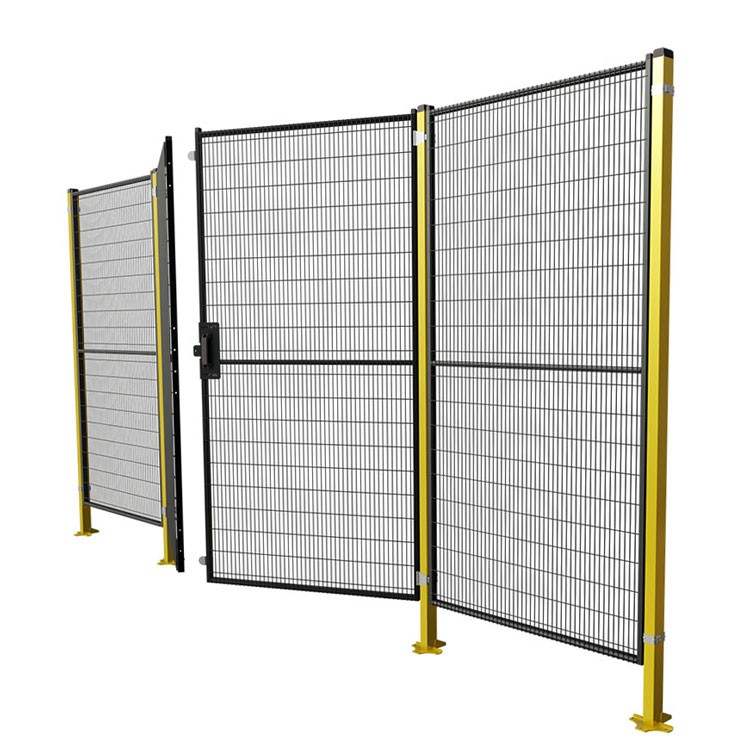

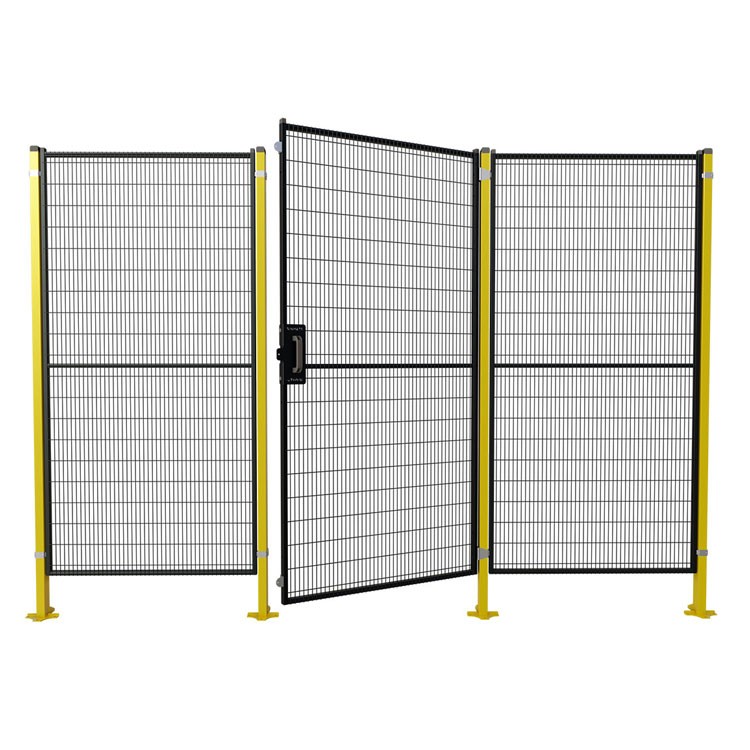

Several fencing arrangements may be produced using this system’s mesh panel sizes, posts, and gates. Posts and panels can be mixed and matched to achieve the desired layout.

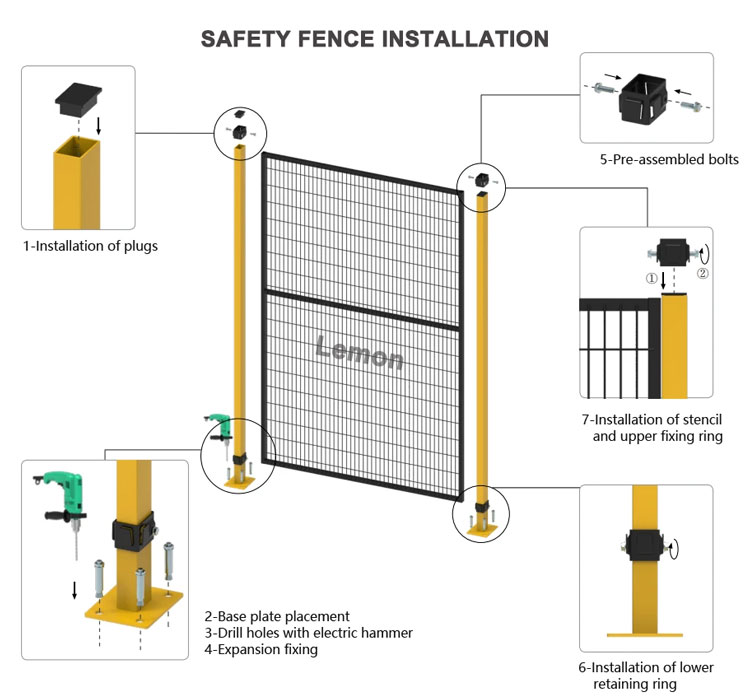

The system is easy to install with basic tools and accessories. De-Fence can be extended, relocated, or even removed and replaced. It is made of steel and completed with a standard powder coat finish.

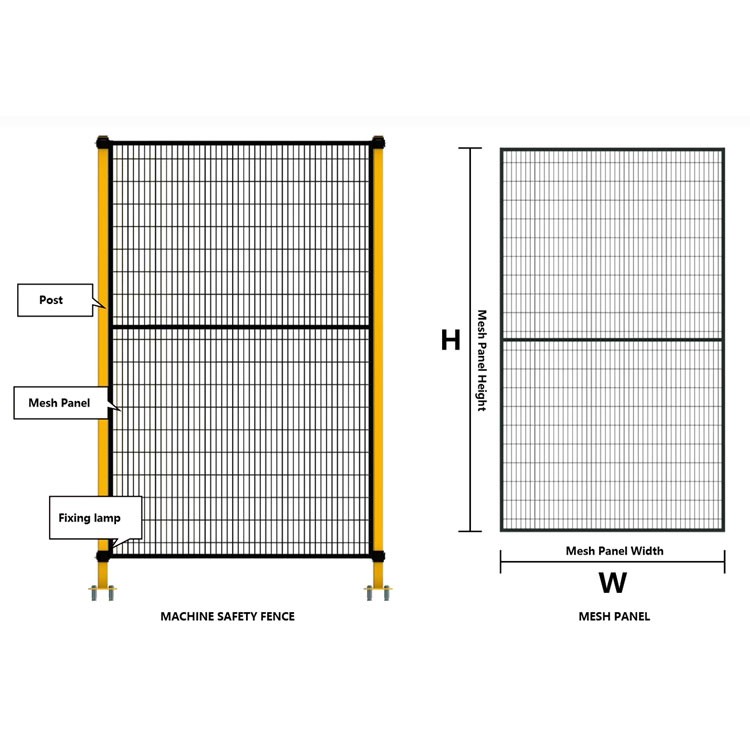

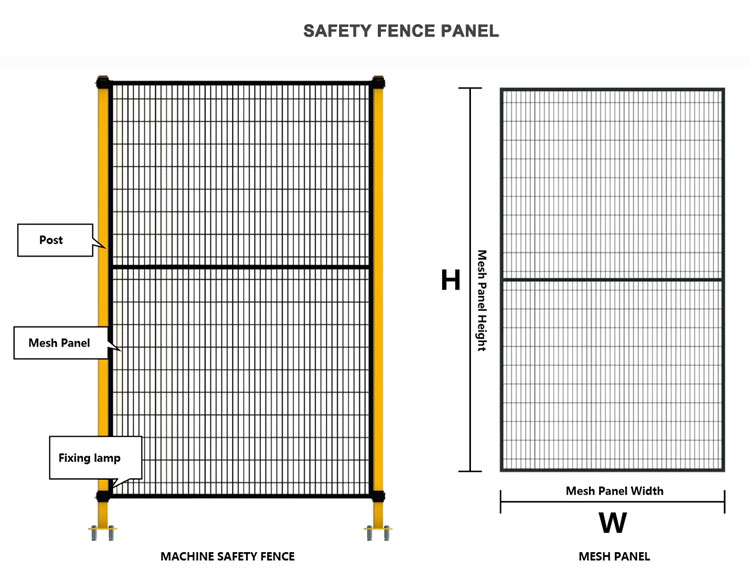

| Mesh panels specifications | ||||
| Height （mm） | Width（mm） | Mesh （mm） | Wire Dia（mm） | color |
| 1500 | 200,300,700,800,100,000,000,000 | 22x100 | 3.0,3.2,3.5,4.0 | Black |
| 1900 | 200,300,700,800,100,000,000,000 | 22x100 | 3.0,3.2,3.5,4.0 | Black |
| 2080 | 200,300,700,800,100,000,000,000 | 22x100 | 3.0,3.2,3.5,4.0 | Black |
| 2480 | 200,300,700,800,100,000,000,000 | 22x100 | 3.0,3.2,3.5,4.0 | Black |
| Custom Mesh Panel Sizes Available | ||||
| Post specifications | ||
| 40x40x2mm SHS | 1.4m, 2.2m or 2.7m length | Black or Yellow |
50x50x2mm SHS | 1.4m, 2.2m or 2.7m length | Black or Yellow |
60x60x2mm SHS | 1.4m, 2.2m or 2.7m length | Black or Yellow |
80x80x2.5/3.0mm SHS | 1.4m, 2.2m or 2.7m length | Black or Yellow |
Custom Mesh Panel Sizes Available | ||

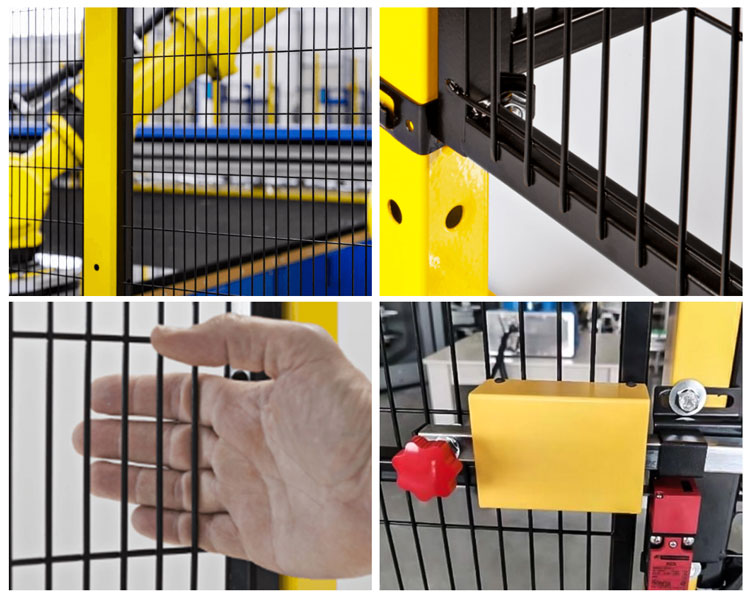

Details

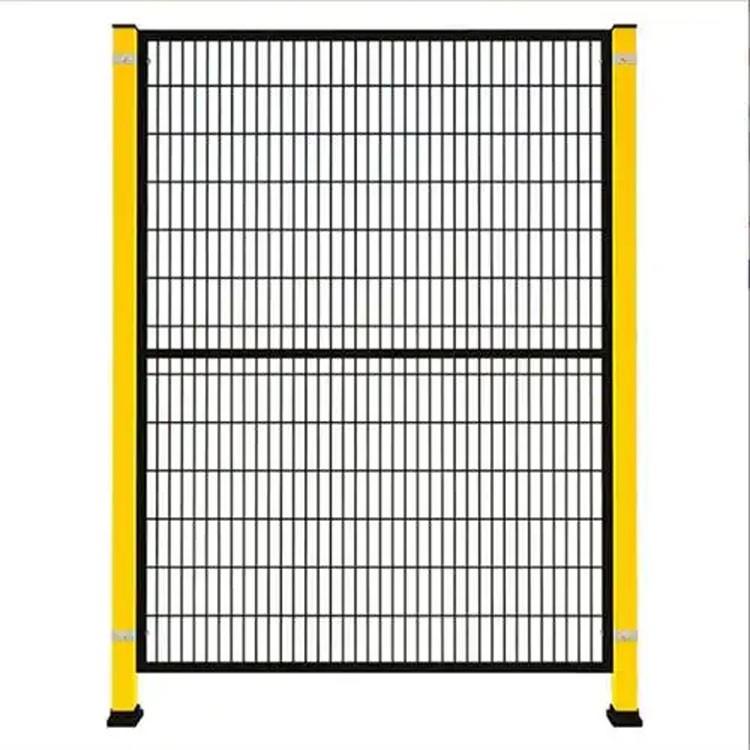

machine guard panel with a 19 x 19 mm frame.

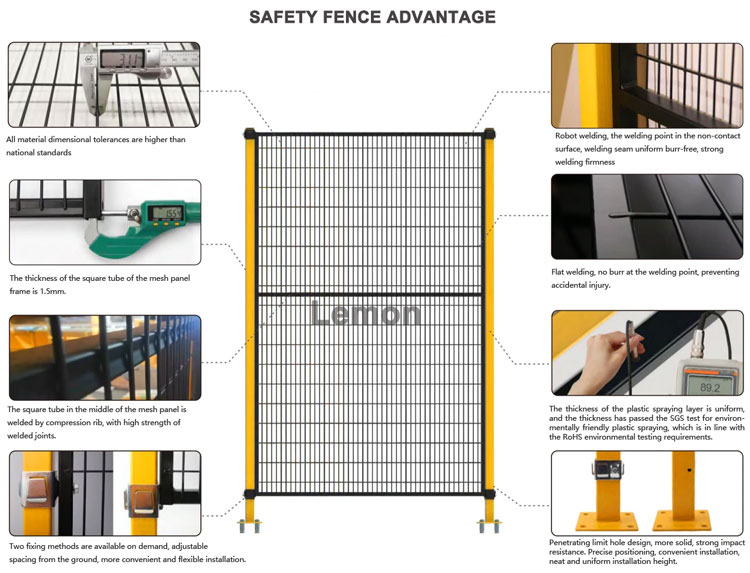

All horizontal wires are welded into the frame and the vertical wires are welded to the crossing tubes, creating a stable and impact resistant panel.

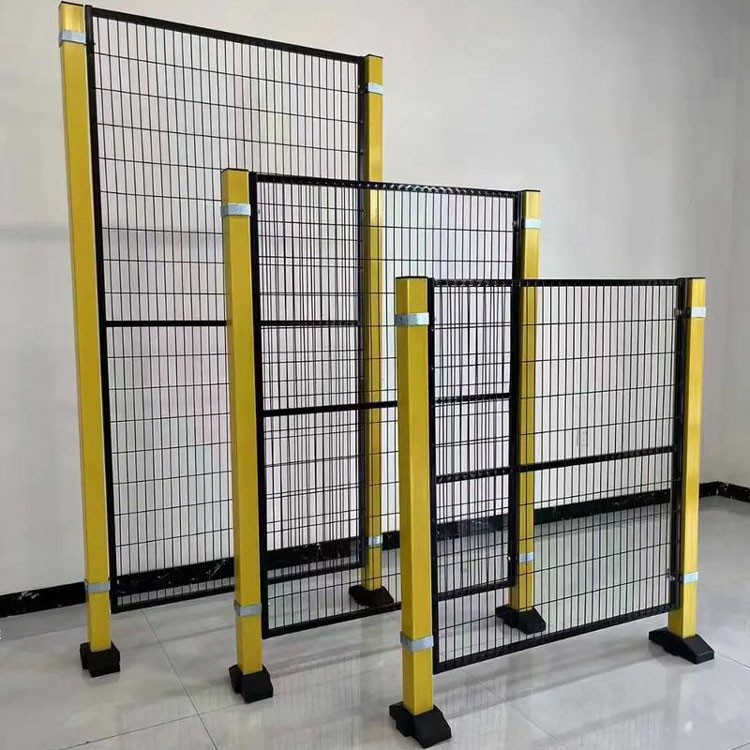

Standard panels are available in 7 widths, from 200 mm to 1500 mm to fit system height of either 1500 mm, 1900 mm, 2080 mm or 2480mm
Standard heights - 1.6 meter, 2.0 meter, 2.2meter and 2.6meter tall
Standard powder-coated Safety Yellow.
Custom post sizes and colours are also available.
Posts are alike for doors and panels.
Post caps are included.
