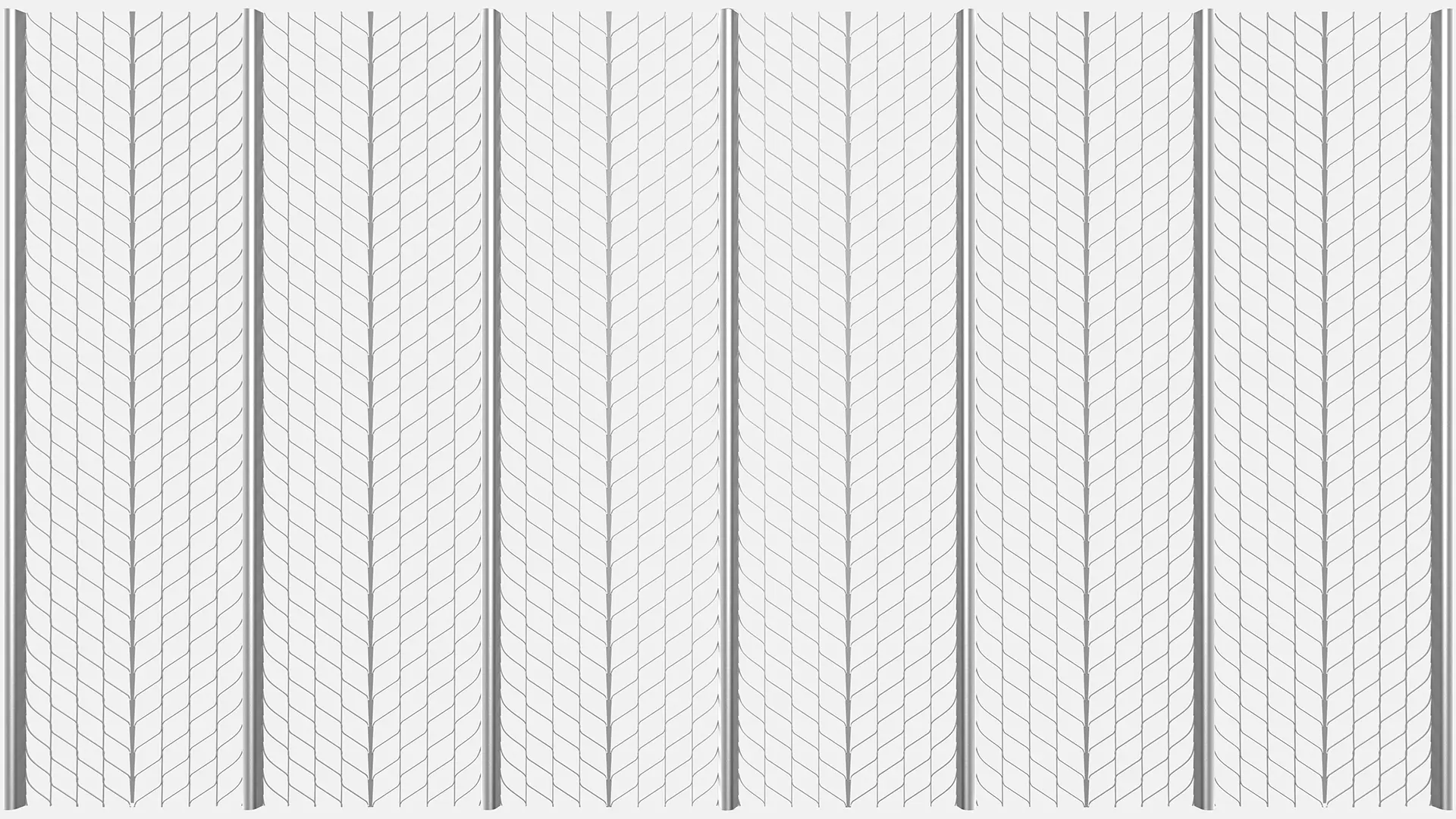

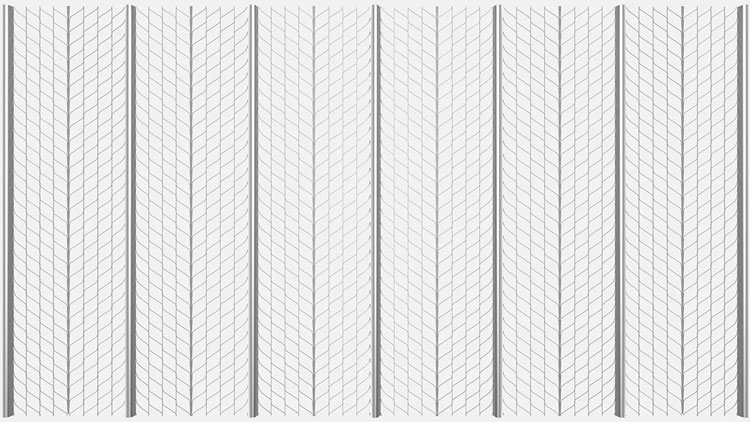

Rib Lath Mesh/Expanded Ribbed Lath
Rib lath is popularly known as Expanded Rib Lath, due to its process of expanding of metal sheet. Galvanized steel ribbed lath wire mesh is free template network, an ideal building material for plastering base, structural formwork and fireproofing construction.
Rib Lath Mesh/Expanded Ribbed Lath

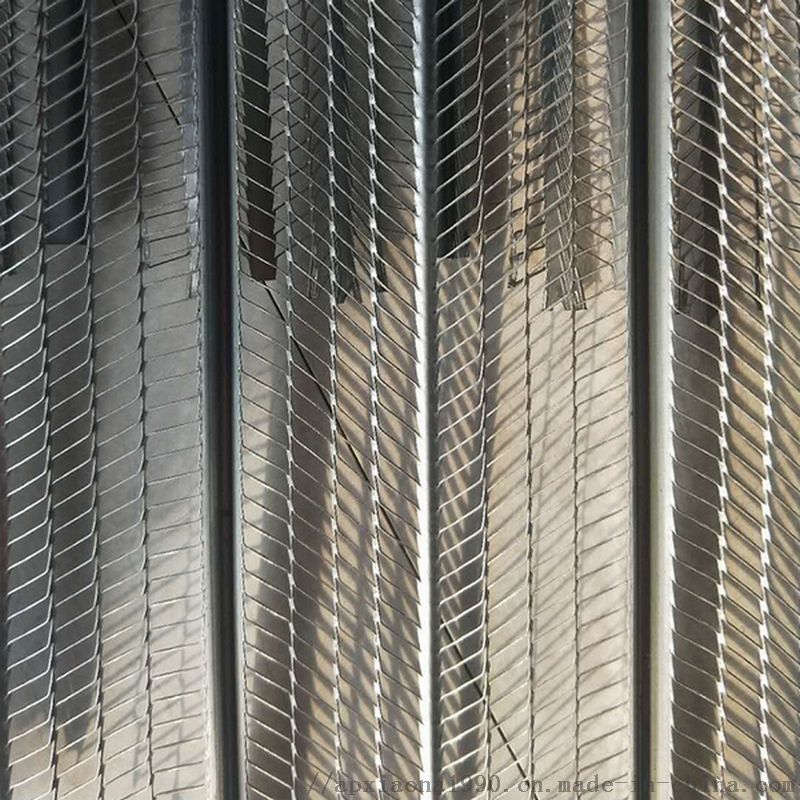

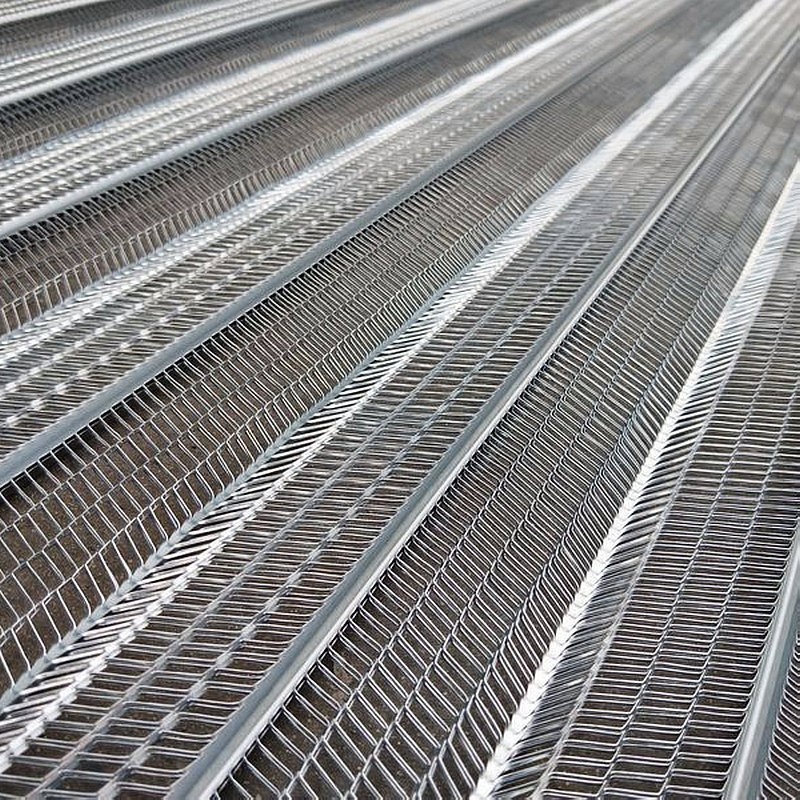

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet. Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties. It is extensively used in plastering works on walls and suspended ceilings ,an ideal building material for plastering base, structural formwork and fireproofing construction.
Material: Galvanized steel expanded metal sheet.
Patten: Ribbed herringbone pattern
Uses: Plaster Base for Wall, Ceiling, Partition, Roof Slab and Stucco Reinforcement.
CHOOSING RIBBED MESH LATH ACCORDING TO RIB HEIGHTS
Comparing 1/8" and 3/8" rib lath:
Rib laths have two popular rib heights, 1/8" flat rib lath and 3/8" rib lath.

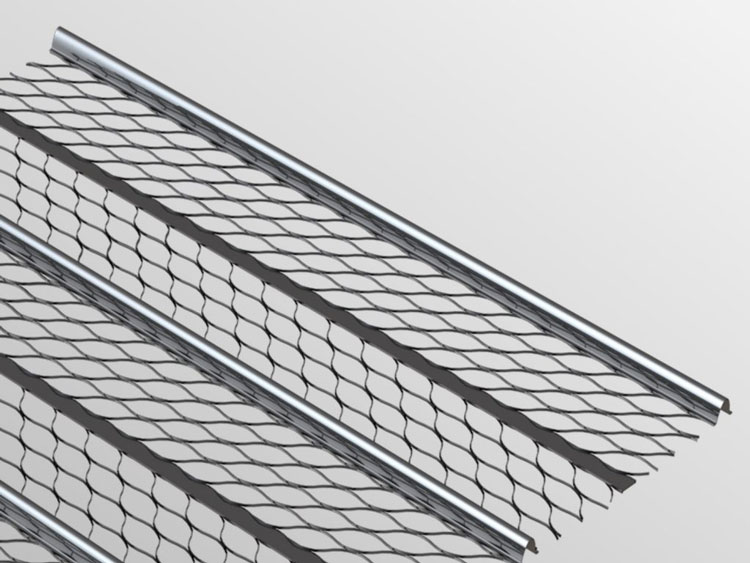

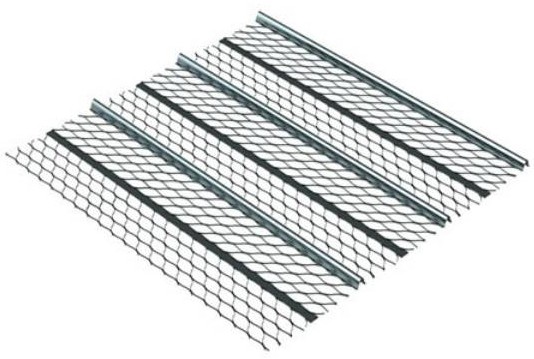

3/8" high rib lath is designed for horizontal forming applications. It has seven longitudinal ribs, each 3/8 inch deep and eight small flat ribs to provide additional rigidity.

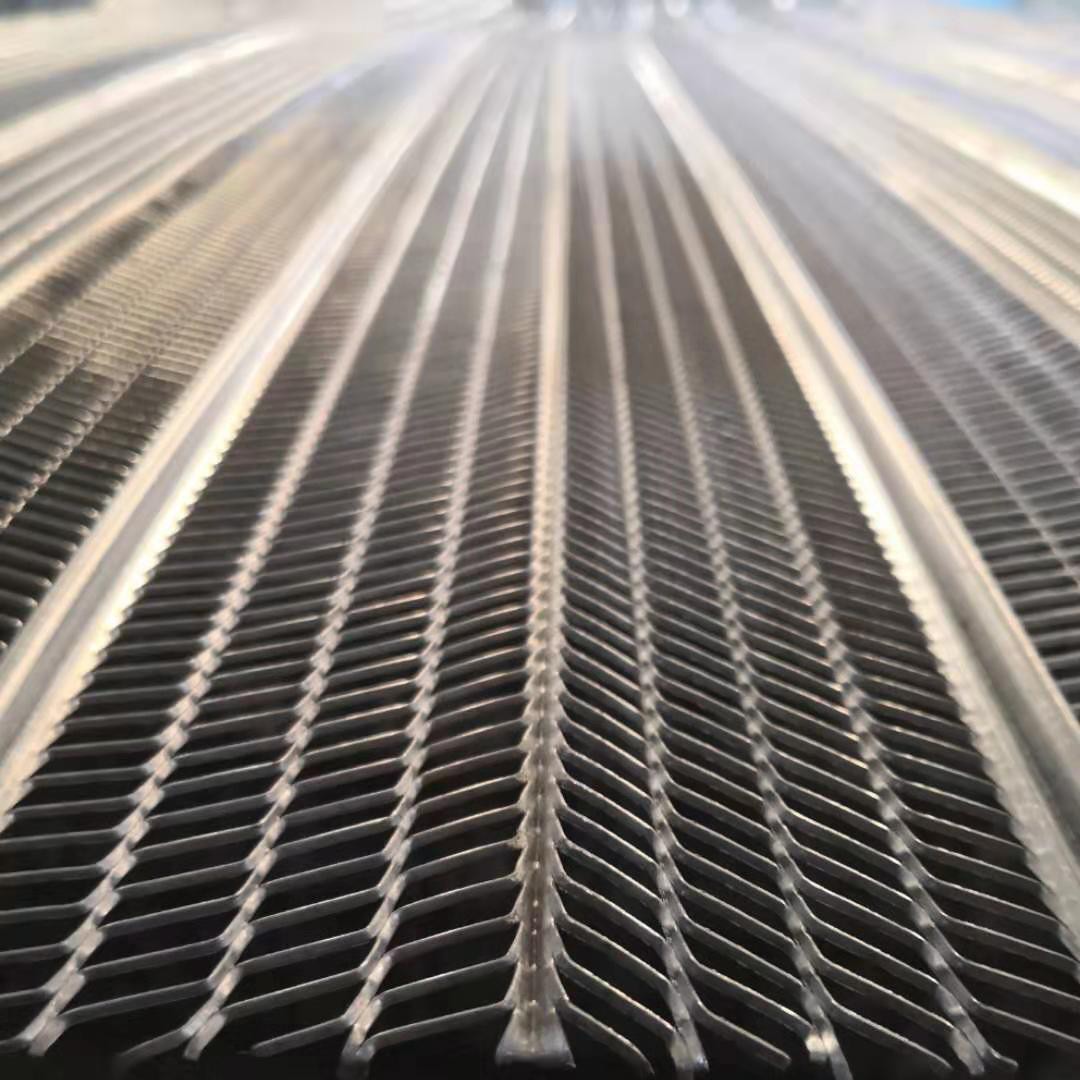

The herringbone mesh pattern provides excellent bonding of the stucco to the lath for ceiling and soffit installations.
1/8" flat rib lath has 1/8 inch small ribs at the outer edge of the sheet allows for a smooth overlap reducing plaster cracks at the laps.
| Specification of Rib Lath | ||||
| Rib Type | Thickness(mm) | Rib Distance(mm) | Weight (KG) | Width X length(mm) |
| 7 Rib | 0.3 | 100 | 1.79 | 610 X 2440 |
| 0.35 | 100 | 2.09 | 610 X 2440 | |
| 0.4 | 100 | 2.38 | 610 X 2440 | |
| 0.45 | 100 | 2.68 | 610 X 2440 | |
| 0.5 | 100 | 2.98 | 610 X 2440 | |
| 5 Rib | 0.3 | 150 | 1.31 | 610 X 2440 |
| 0.35 | 150 | 1.53 | 610 X 2440 | |
| 0.4 | 150 | 1.75 | 610 X 2440 | |
| 0.45 | 150 | 1.96 | 610 X 2440 | |
| 0.5 | 150 | 2.17 | 610 X 2440 | |
| 9 Rib | 0.3 | 75 | 1.89 | 610 X 2440 |
| 0.35 | 75 | 2.28 | 610 X 2440 | |
| 0.4 | 75 | 2.53 | 610 X 2440 | |
| 0.45 | 75 | 2.84 | 610 X 2440 | |
| 0.5 | 75 | 3.15 | 610 X 2440 | |
Standard Type 3.4 Rib Lath, with paper-backing
Specifications for USA: 3.4 Rib lath, 3/8" Ribs, HOT-DIP GALVANIZED
Size options: 0.3 mm x 0.6 m x 2.5 m
Different lb.s/sq.yard available
Galvanised Steel Rib Lath for Singapore Market
Ribbed metal lath wire, Hot Dip Galvanised, for exterior applications
Specification: 600mm width, 2100mm length, 0.25mm thickness
Material: Galvanized mild steel
Ribbed Metal Lath EU Construction Materials
Specification:
Laminate steel
Thickness 0,30mm
Weight sqm 0,879 kg/m2
Packing: In bundle of 30 m2, Pallet of 600 m2
Rib Lath, Euro Standard Specification for Germany:
In 2500 mm x 600 mm sheet size
Rib depth: 4 mm
Thickness: 0.3 mm
Packing: 10 Pieces per Bundle.
Galvanized Iron Riblath, Sheet 0.6m x 2.4m
Riblath Material: Galv Iron
Specification: Thickness 0.25mm
Sheet size: 0.6m x 2.4m
Hole Size: 8.5mm x 24mm
Rib height: 8mm
Rib distance: 100mm
Cold Rolled Iron Rib Lath, Sheet 0.6m x 2.4m
Material: Cold Rolled Iron
Specification: Thickness 0.25mm
Sheet size: 0.6m x 2.4m
Hole Size: 8.5mm x 24mm
Rib height: 8mm
Rib distance: 100mm
Galv. Rib Lath - Expanded Metal with Rib Hot Galvanized Steel ASTM C847
Material: Cold rolled and hot galvanized steel in accordance with ASTM C 847.
Thickness: 0.6 mm
Rib Distance(mm): 90mm
Width: 600MM
LENGTH :2.5M
RIB DISTANCE :100mm
RIB HEIGHT: 4mm
7 Rib 8 Opening
HDG Rib Lath, Hot Dip Galv. After Expanding, 27" x 96" Sheet
Material: HDG Steel Sheet
HD Galvanization type: After punching
Quality: ASTM-A653
Specification:
Weight: 11.9 lbs. per sheet
V-Ribs: 3/4 inch deep, 3 7/8 inch on center
Lath width: 27 inch
Lath length: 96 inch
Length options: 96 inch, 10 feet, 12 feet
