Stainless Steel Wire Mesh
stainless steel wire mesh
tainless steel woven wire mesh has become an indispensable material in many industries due to its corrosion resistance, high strength and numerous weaving specifications. It is a woven metal mesh fabric made in numerous combinations of wire diameters, mesh sizes, and weaving methods. The main material is stainless steel wire, of which 304 stainless steel and 316 stainless steel are the most widely used of all stainless stee
stainless steel wire mesh/stainless steel woven wire mesh

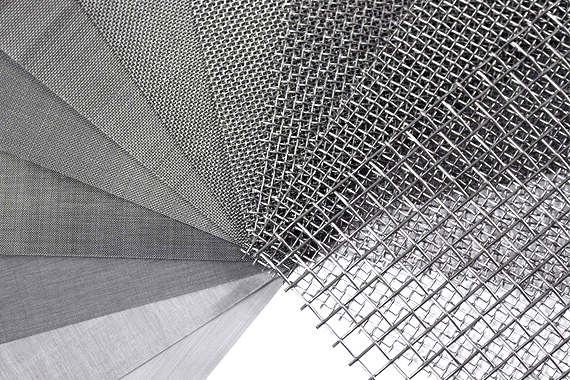

Stainless steel woven wire mesh has become an indispensable material in many industries due to its corrosion resistance, high strength and numerous weaving specifications. It is a woven metal mesh fabric made in numerous combinations of wire diameters, mesh sizes, and weaving methods. The main material is stainless steel wire, of which 304 stainless steel and 316 stainless steel are the most widely used of all stainless steel.
Stainless steel wire mesh has excellent corrosion resistance and durability, making it suitable for various applications in many industries. It is very suitable for sieving and filtration in acidic and alkaline environments. Liquid and gas filtration in aerospace, petroleum, chemical and other industries. Powder filtration and particle sieving in the fields of food processing and medicine. Also popular in the construction field of walls, ceilings, security screens, window screens, partitions, fireplace screens, etc.
The stainless steel woven wire mesh products and services we provide include:
Type 304 Stainless Steel
Type 316 Stainless Steel

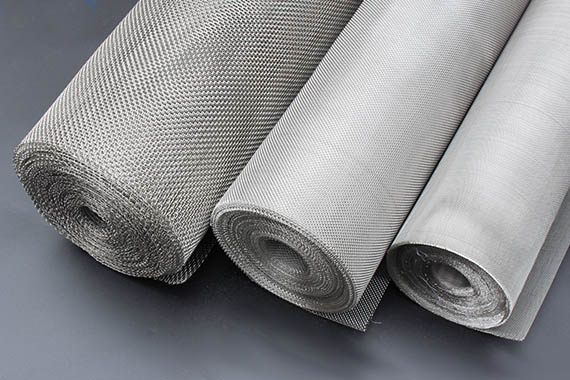

Wire Mesh Rolls
Wire Mesh Sheets
Various specifications are customized to suit your special application needs. (Weaving method, mesh size, wire diameter, etc.)
Cutting To Size, Slitting, Flattening, Mesh Analysis, etc.
specification of stainless steel wire mesh
Product Name: Stainless Steel Woven Wire Mesh, Woven Wire Cloth
Main Material: Stainless Steel Wire
Stainless Steel Grade: 304, 304L, 316, 316L, etc
Wire Diameter Range: 0.016-0.5mm
Mesh Range: Plain Weave: 18–450mesh(800-30micron), Twill Weave: 150-800mesh(106-18micron), Dutch Weave: 8*62-500*3500mesh
Weave Types: Plain Weave, Twill Weave, Dutch or ‘Hollander’ Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave
Width Range: Maximum 6m, usually the width is 1m
Length Range: Maximum 50m, usually the length is 30m/roll
Mesh Type: Rolls and sheets are available
Production Standards: ASTM E2016 – 20

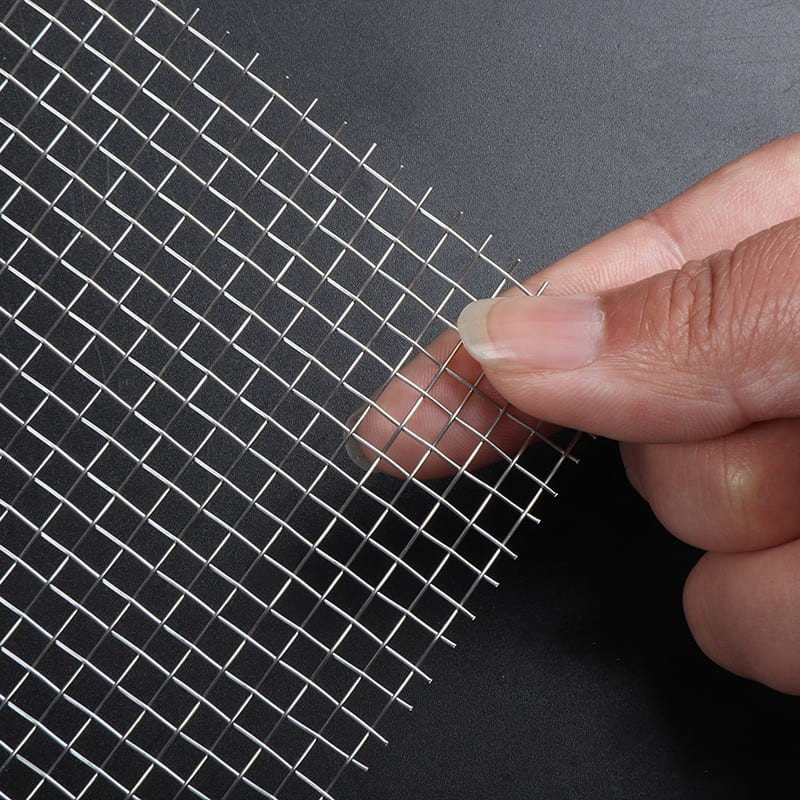

6 mesh, 3800 micron
Wire Diameter: 0.50 mm
8 mesh, 2800 micron
Wire Diameter: 0.40 mm

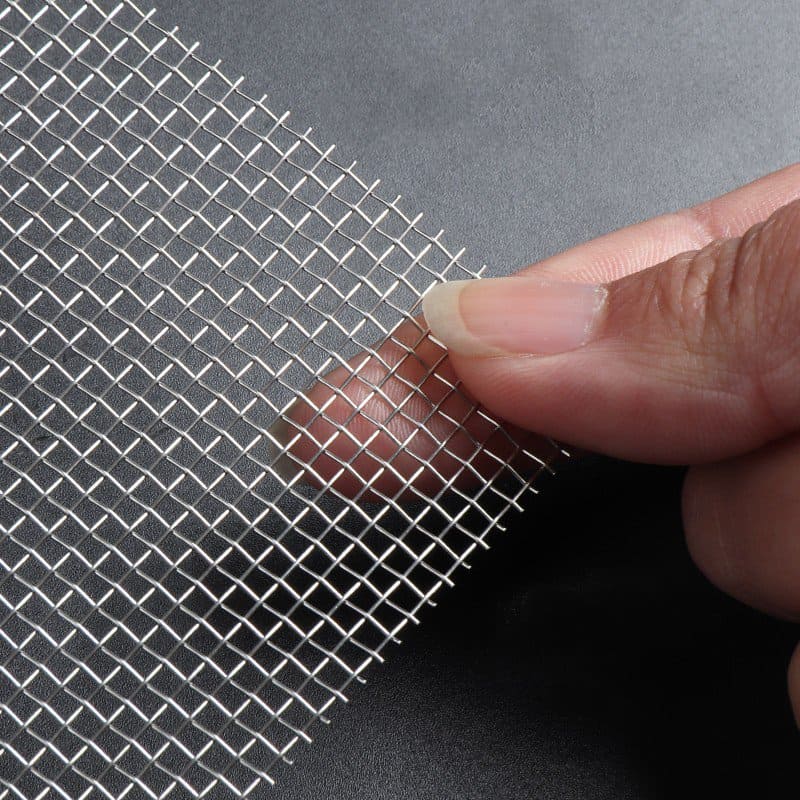

10 mesh, 2200 micron
Wire Diameter: 0.35 mm

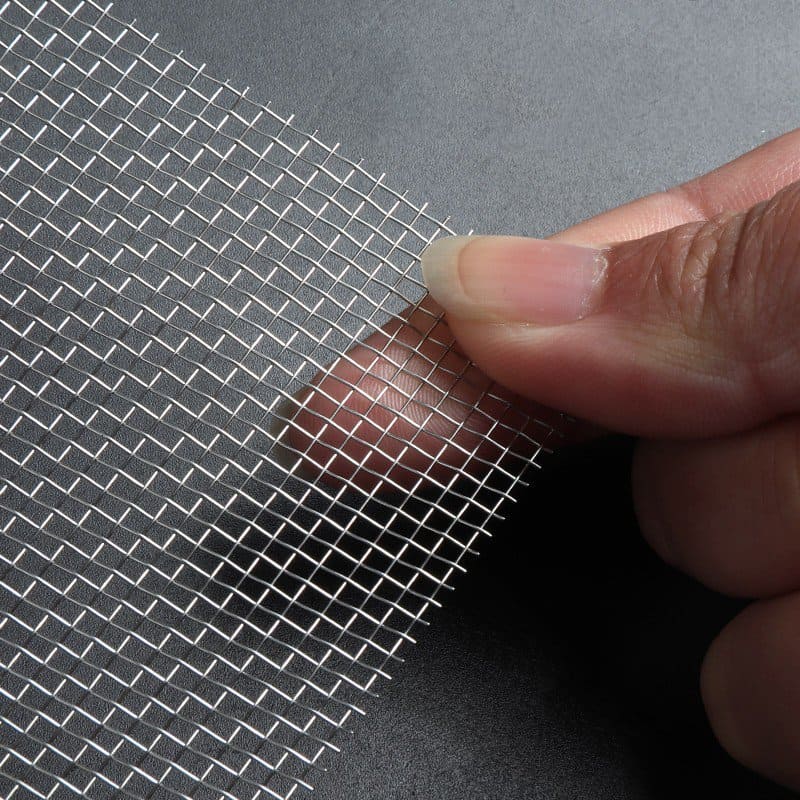

12 mesh, 1800 micron
Wire Diameter: 0.30 mm
14 mesh, 1500 micron
Wire Diameter: 0.30 mm

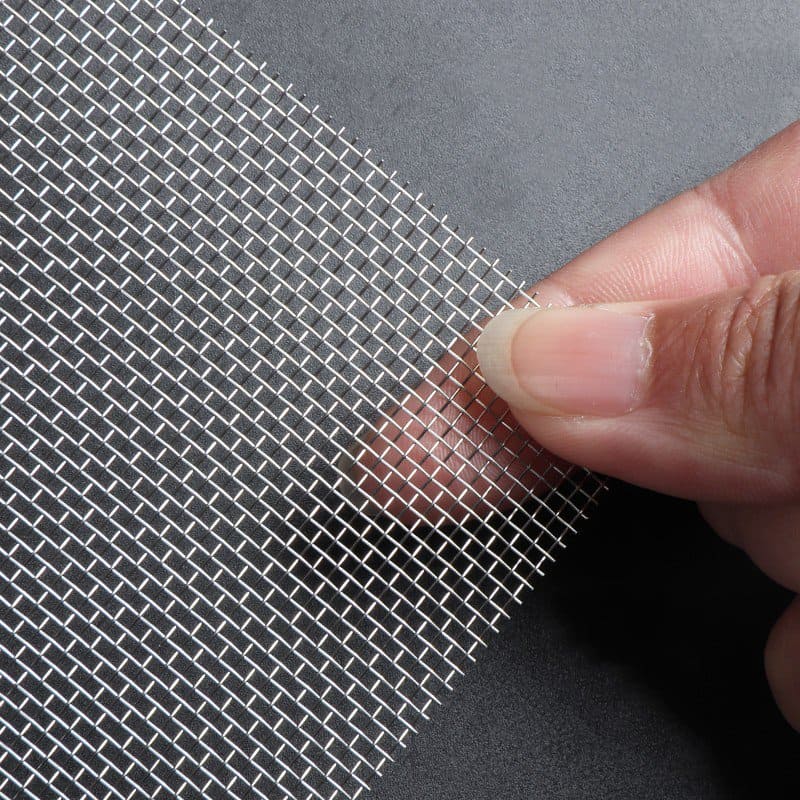

16 mesh, 1400 micron
Wire Diameter: 0.27 mm

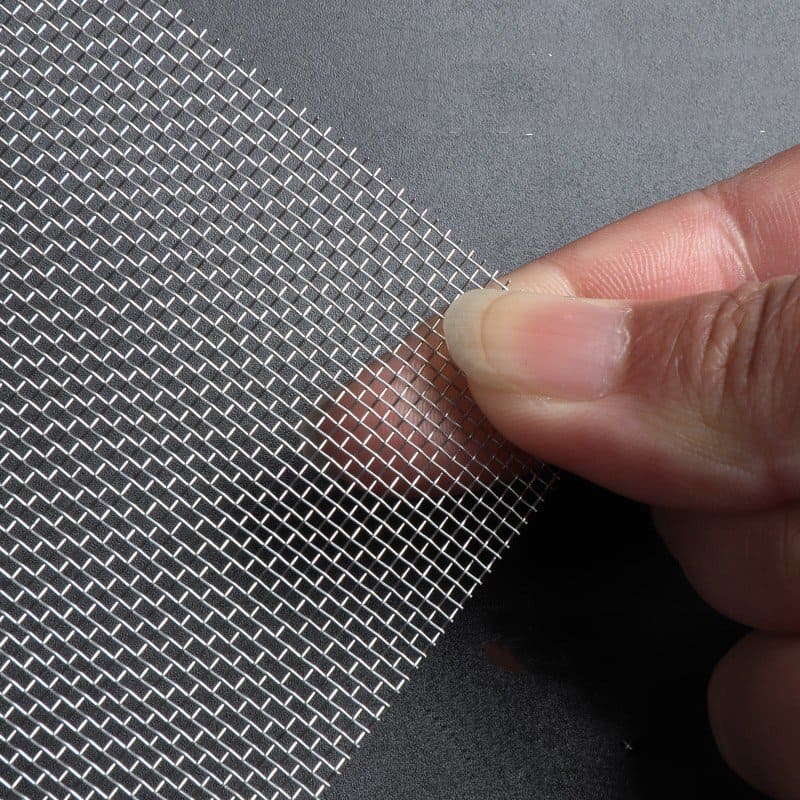

20 mesh, 1100 micron
Wire Diameter: 0.23 mm

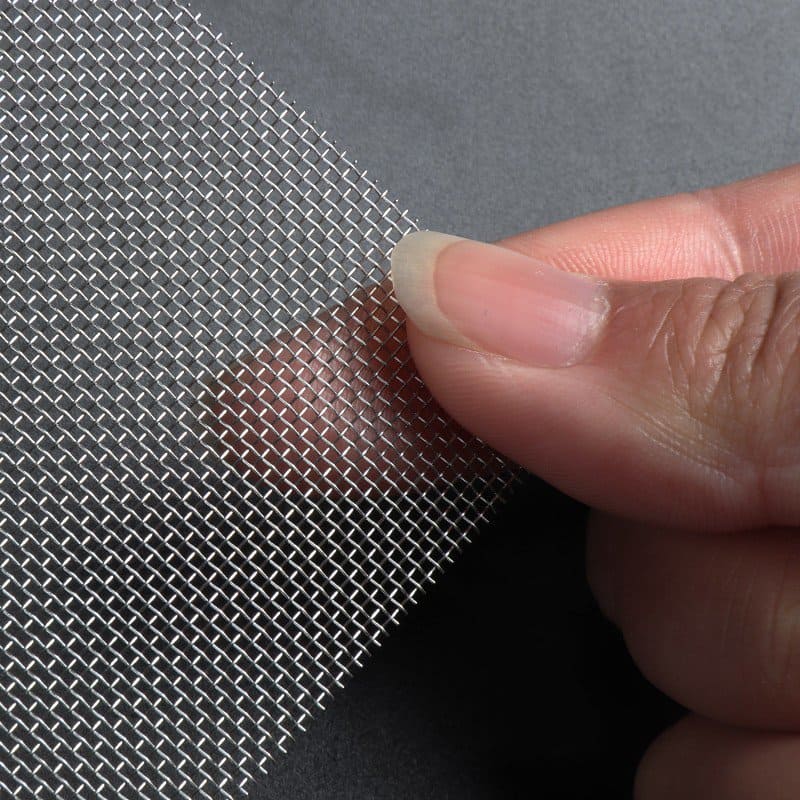

24 mesh, 800 micron
Wire Diameter: 0.25 mm

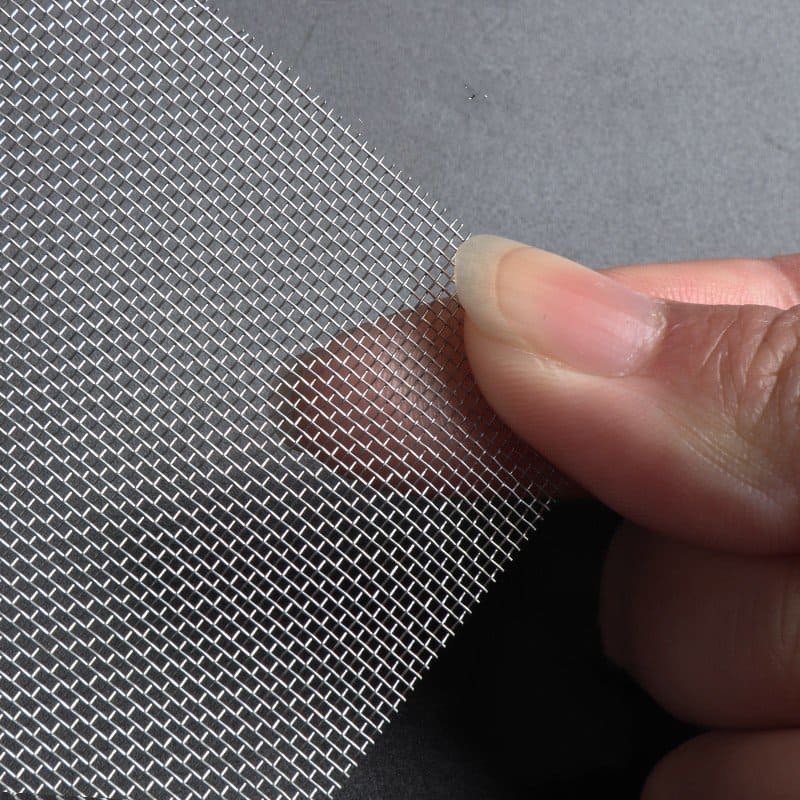

30 mesh, 700 micron
Wire Diameter: 0.15 mm
40 mesh, 520 micron
Wire Diameter: 0.14 mm

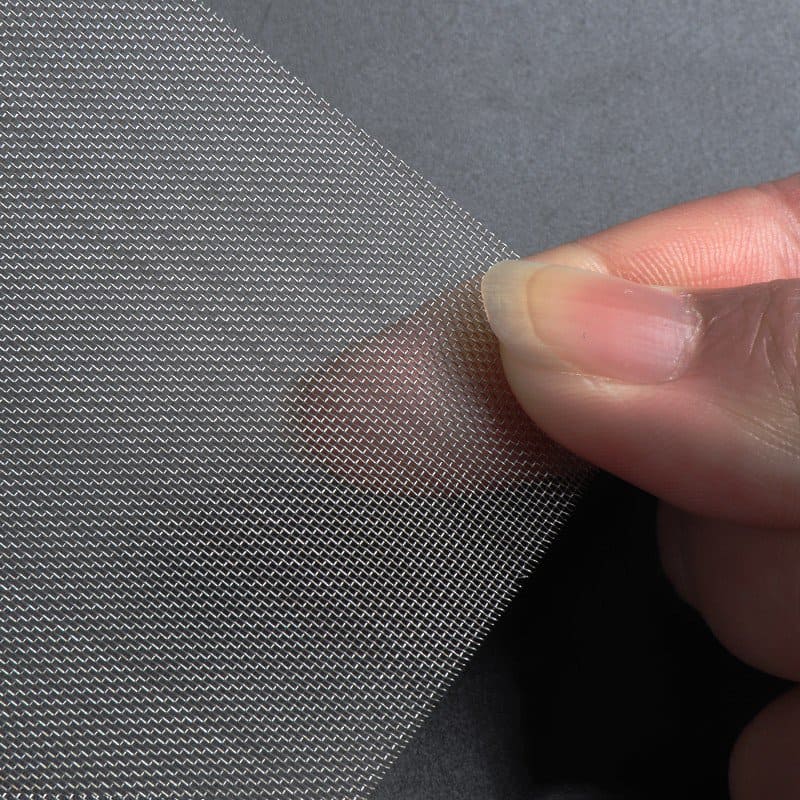

50 mesh, 430 micron
Wire Diameter: 0.13 mm

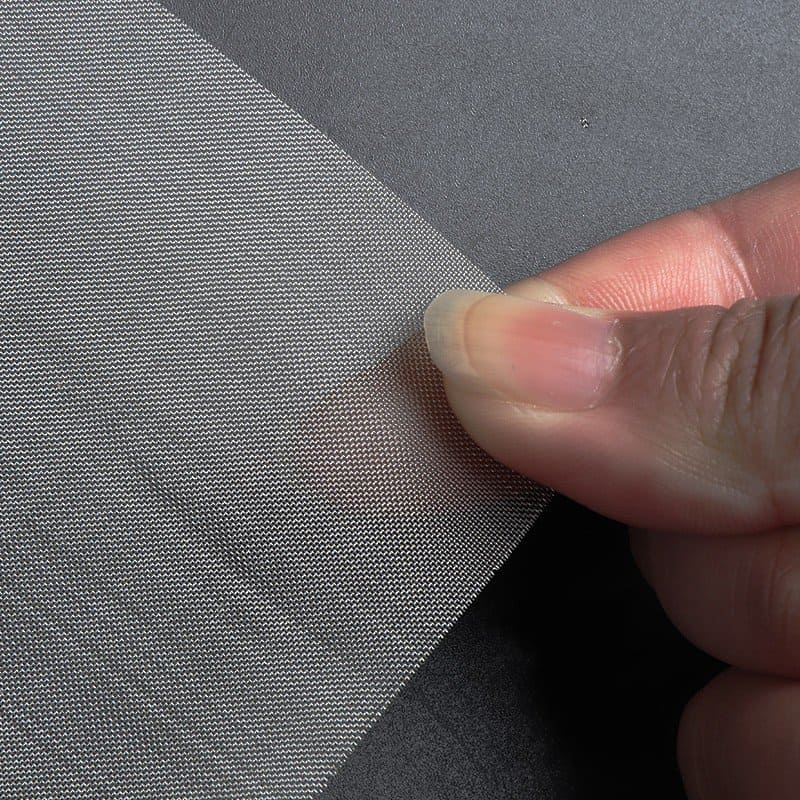

60 mesh, 350 micron
Wire Diameter: 0.10 mm

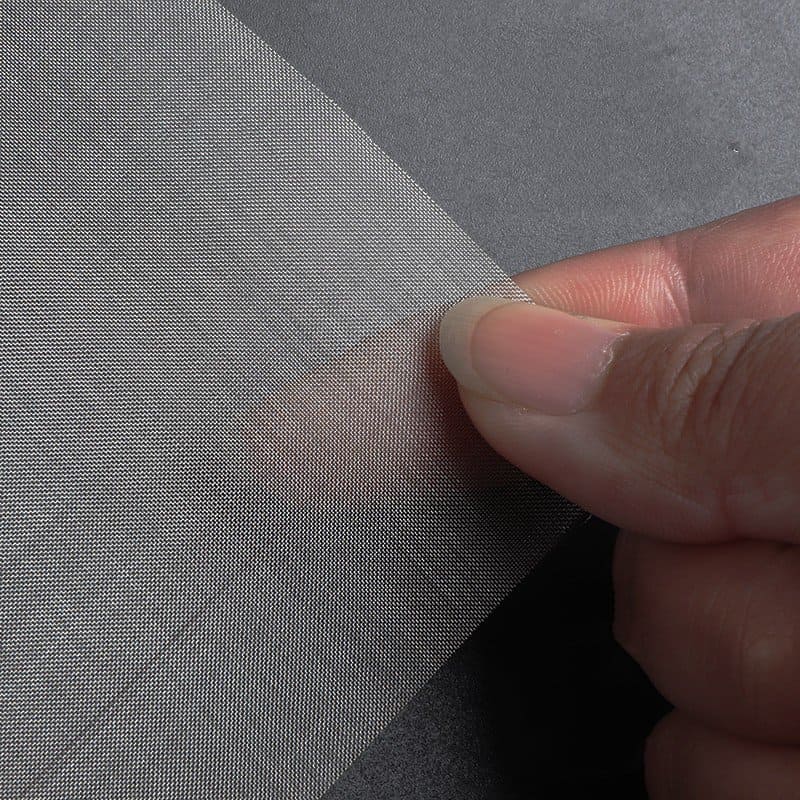

80 mesh, 250 micron
Wire Diameter: 0.09 mm
100 mesh, 180 micron
Wire Diameter: 0.08 mm
120 mesh, 140 micron
Wire Diameter: 0.07 mm

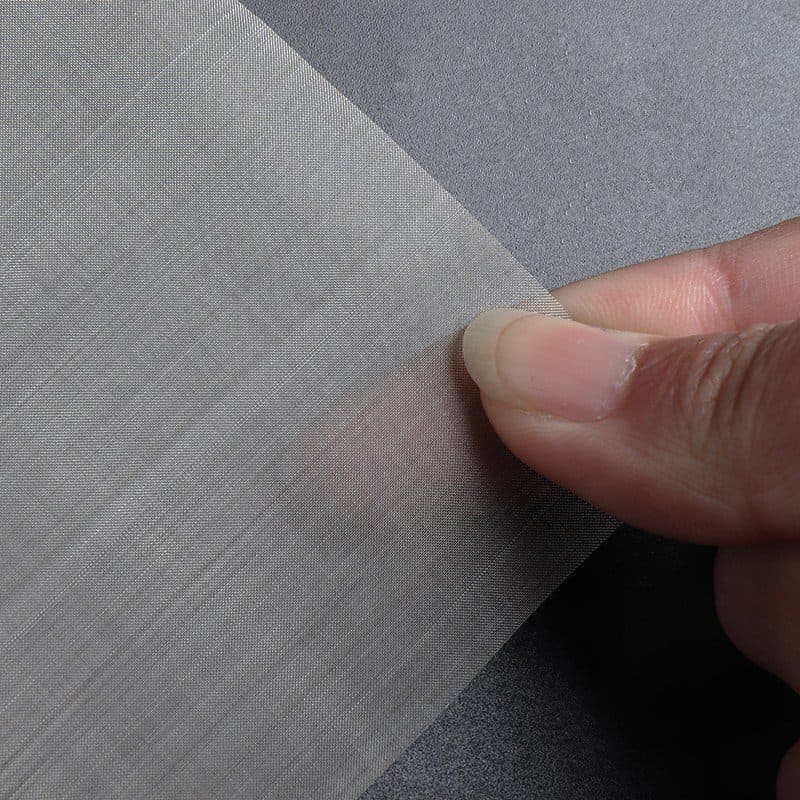

150 mesh, 110 micron
Wire Diameter: 0.06 mm

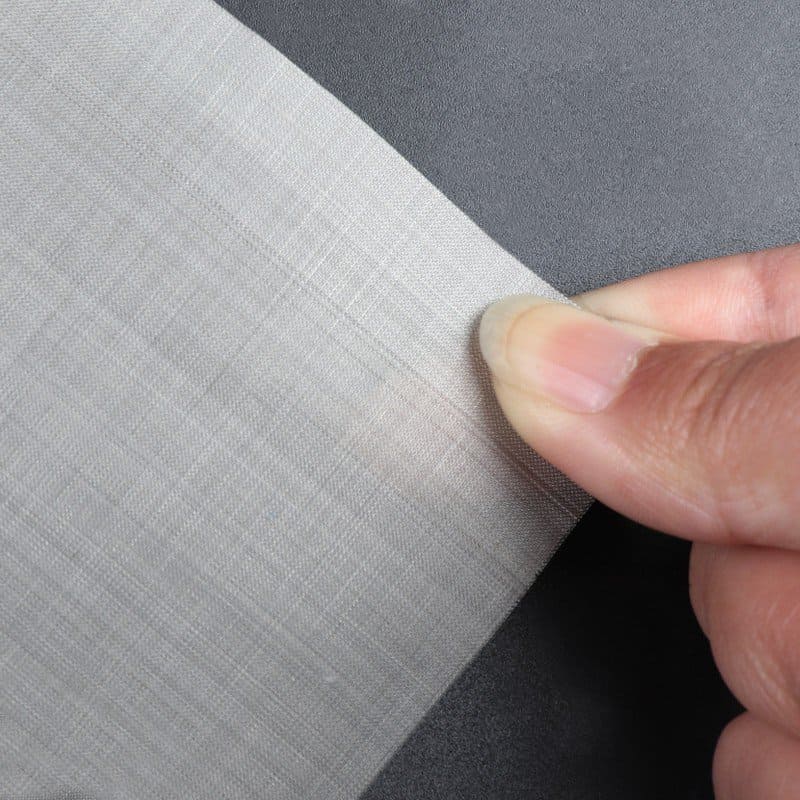

200 mesh, 80 micron
Wire Diameter: 0.05 mm
250 mesh, 60 micron
Wire Diameter: 0.045 mm

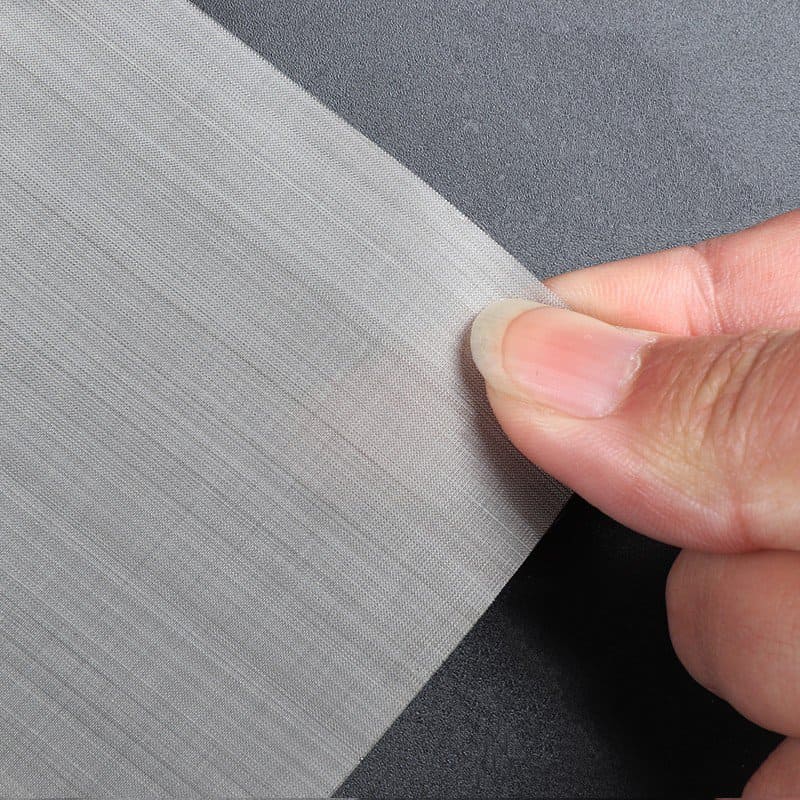

300 mesh, 40 micron
Wire Diameter: 0.04 mm

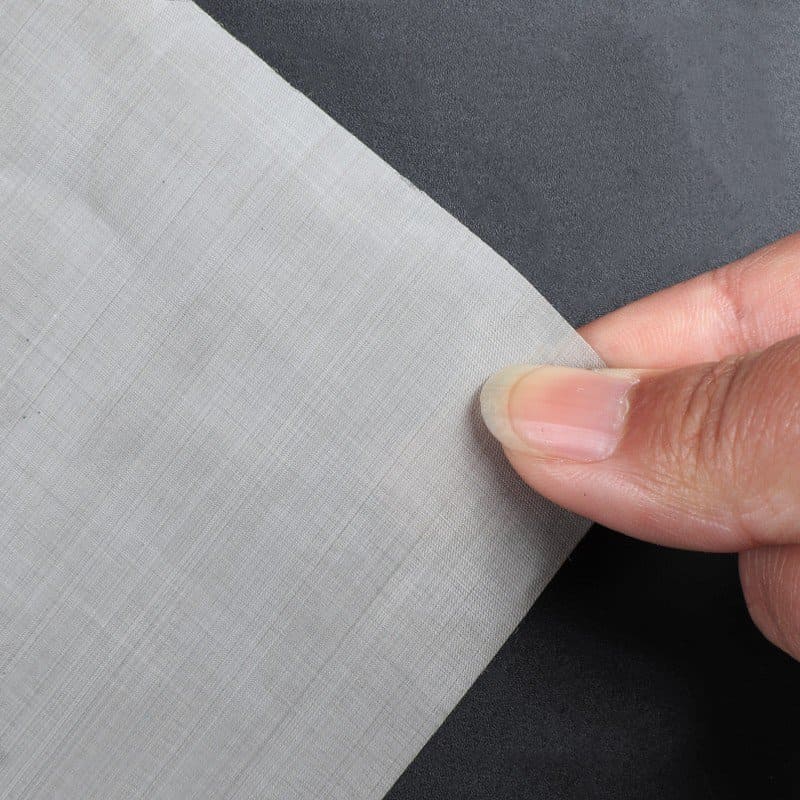

400 mesh, 30 micron
Wire Diameter: 0.03 mm
