Padel tennis Court

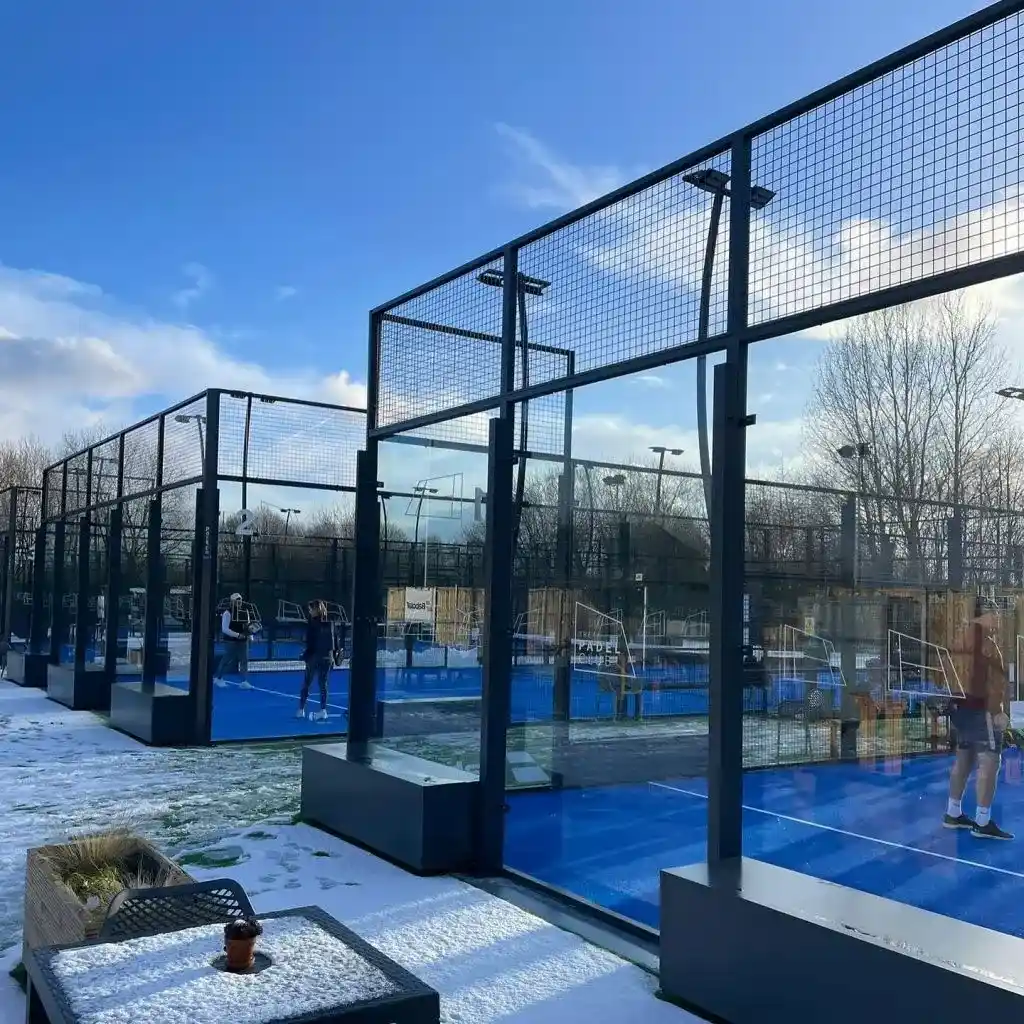

Standard Size Padel Court Systems Padel tennis Court

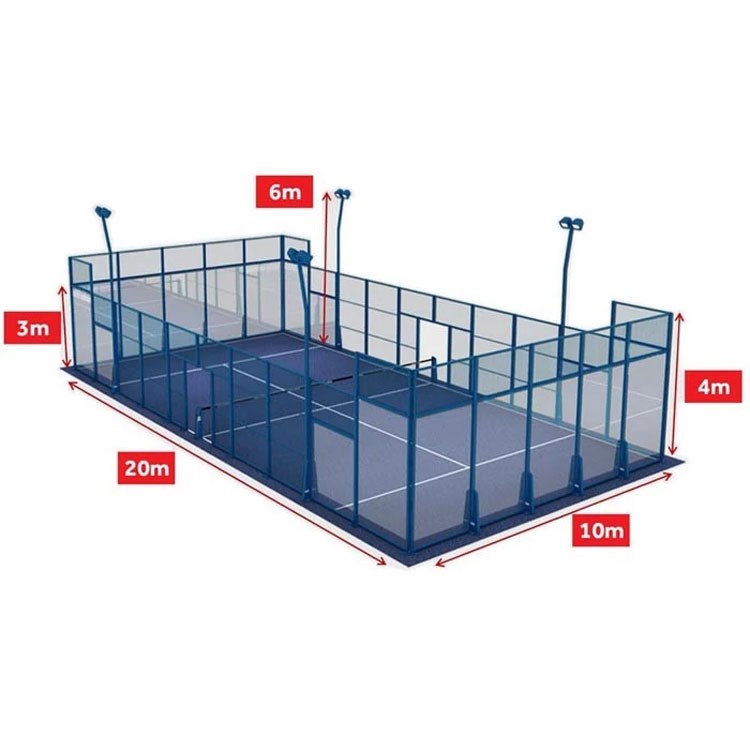

A standard padel court is a rectangular space measuring 20 meters long and 10 meters wide. The court is divided into two equal halves by a net, similar to a tennis court. Here’s a closer look at the key components of a padel court:

Total Court Size: 20 meters by 10 meters

Net Height: The net stands at 88 cm (0.88 meters) at the center and slightly higher at the posts, reaching 92 cm.

Sidewalls: The sidewalls are typically made of glass or other transparent materials and are 3 meters high for the first 3 meters of length, after which a mesh or fence continues upward to a height of 4 meters.

Back Walls: The back walls are also 3 meters high, with an additional mesh or fence reaching up to 4 meters.

The playing area is fully enclosed with either glass, mesh, or solid walls to allow for the unique rebounds that are integral to the game.

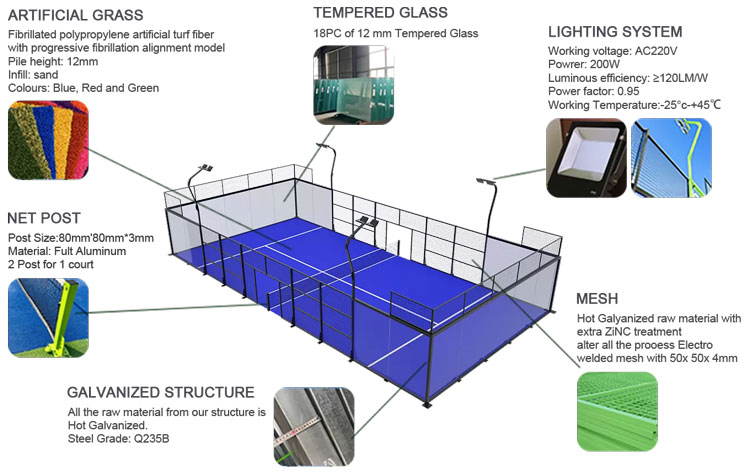

Specification of padel tennis court
Item	Material	Finish	G.W.	Package Size	CBM
Hot Dip Galvanized Steel Tube (HS:73066100)	Corner Column 1001003.0mm4pcs Other Column 100503.0mm12pcs Light Arm 50503.0mm*4pcs	Powder Coating	1245kg	5.780.751.5 4.30.750.4 3.11.00.7	5.63m³
Galvanized Steel Mesh (HS:73143100)	Size 12m46pcs Fence 50302.0mm Mesh Diameter 4.0mm Mesh Hole 50*50mm	Powder Coating	720kg	2.01.01.4	5.6m³
Tempered Glass (HS:7007190)	32m 12mm Tempered Glass18pcs	Hole Drilled	3200kg	3.10.312.13	2.11m³
Artificial Grass (HS:57033000)	3 Rolls(210m²) Height 12mm Gauge 3/16 Dtex 8500 Desity 52500	Blue/ Green	553kg	4.10.550.552rolls 2.10.55*0.55	3.12m³
Led Light (HS:94054090)	8 sets Led Light 200w IP 65 Water-proof	*	70kg	0.450.420.17	0.26m³
Tennis Net with Pols (HS:95069900)	1 set	Electropolished	16kg	*	0.18m³
Bolts&Nuts Elastic Washers (HS:73181590)	Stainless Steel	*	50kg	*	0.04m³
Total			5845kg		16.94m³
Two sets are exactly fitted into a 20 feet container, 4 sets need a 40 feet container.
