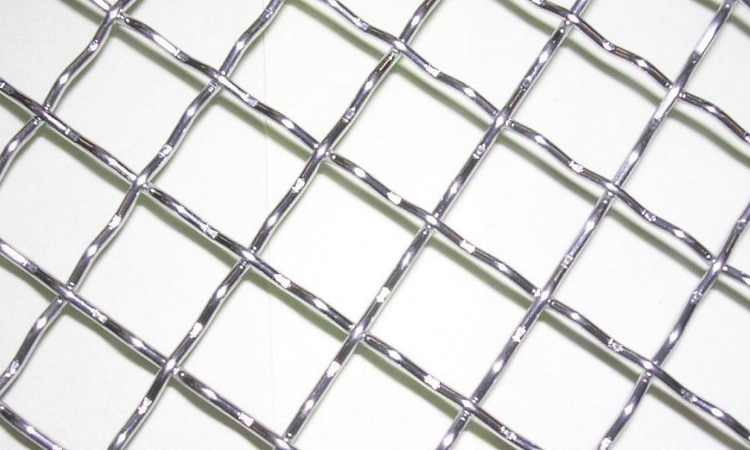

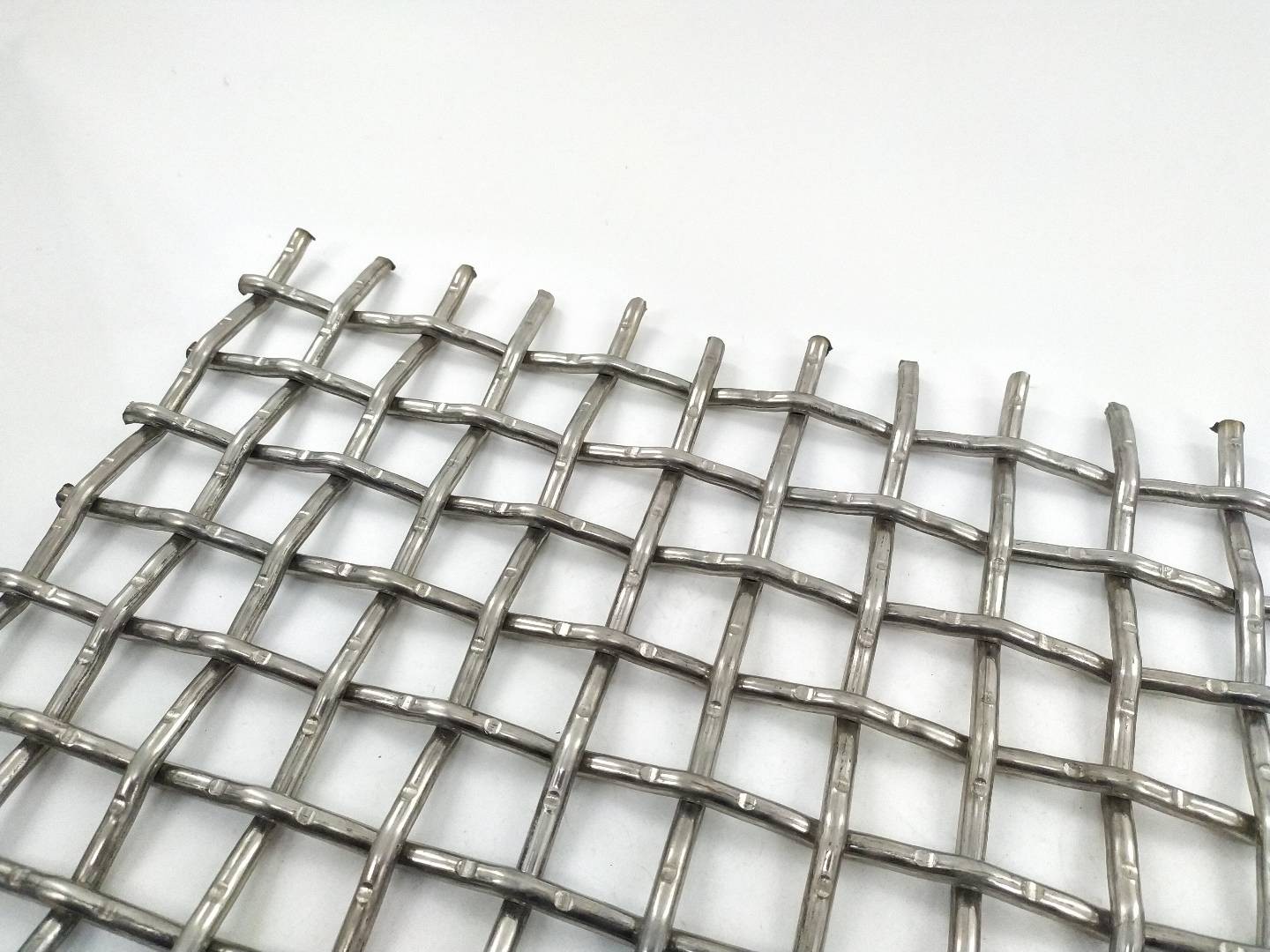

Stainless Steel Crimped Wire Mesh

Stainless Steel Crimped Wire Mesh

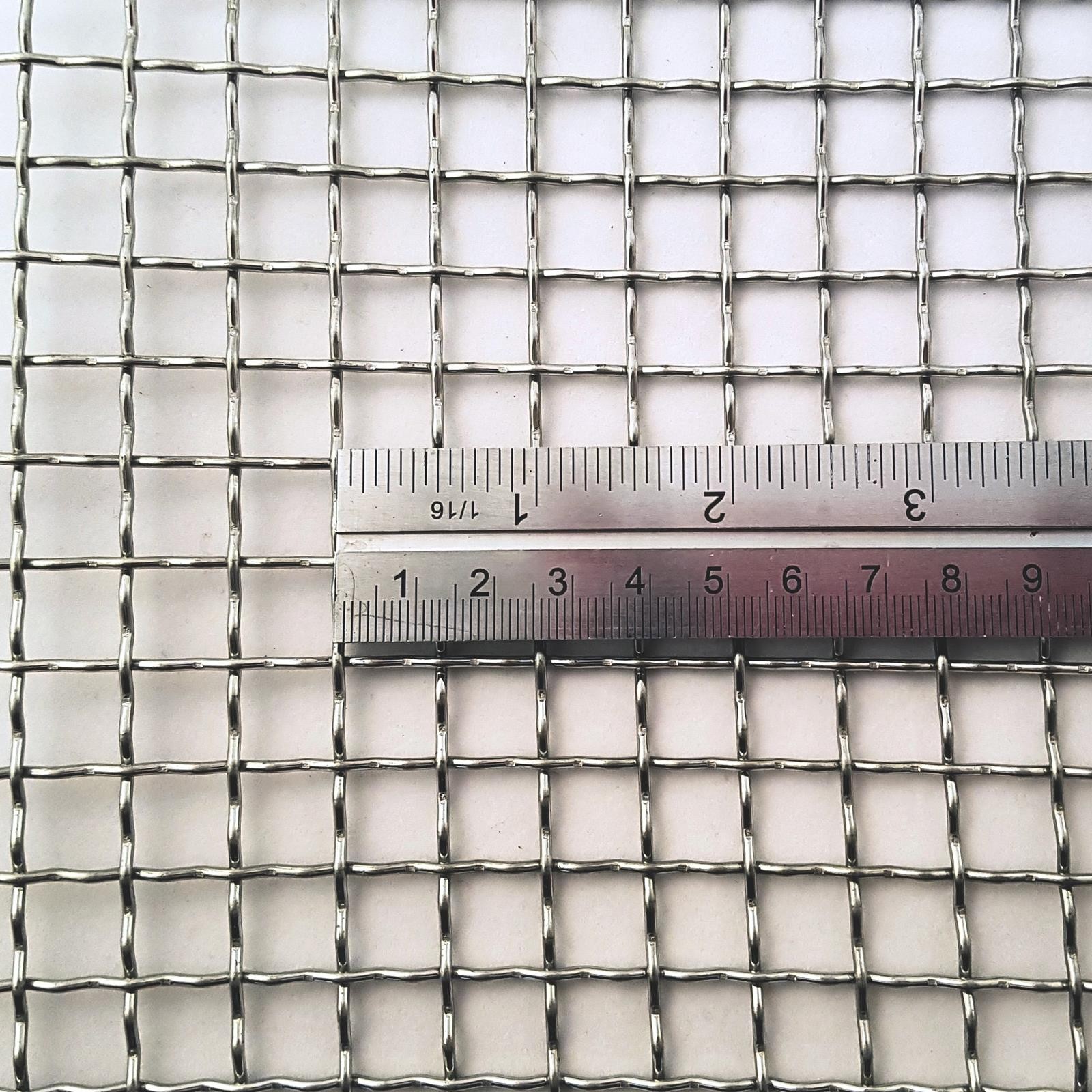

Pre-crimping wire enables the mesh to lock together, creating a tight weave with good rigidity and pleasing aesthetics. It is used extensively in architectural applications, as infill panels, cages and decoration. It is also used in acoustics, filtration, bridge guards, aerospace parts, rodent control, and truck grills.

Stainless Steel Crimped Wire Mesh

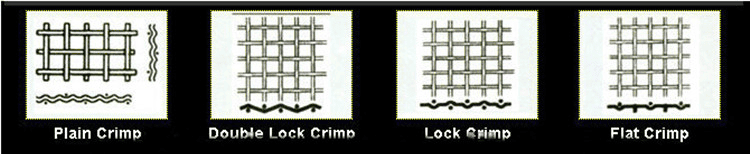

Crimped Wire Mesh is made through crimping mesh machine with pre-crimped wire in the following styles listed. Square or rectangular openings available due to the different crimping styles.

1.plain crimped

2.Double lock crimped

3.Lock crimped

4.Flat top crimped

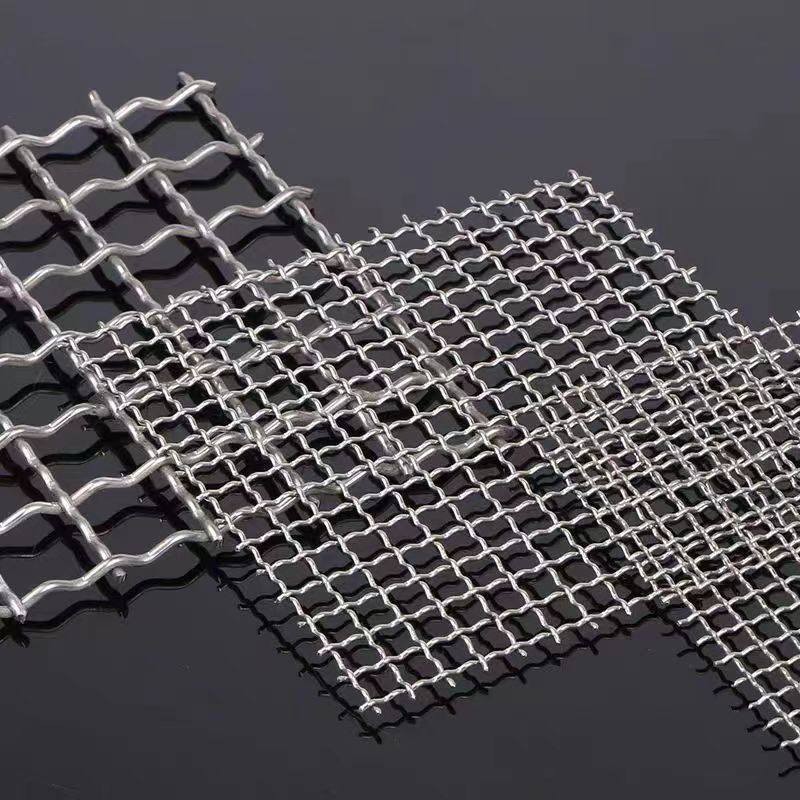

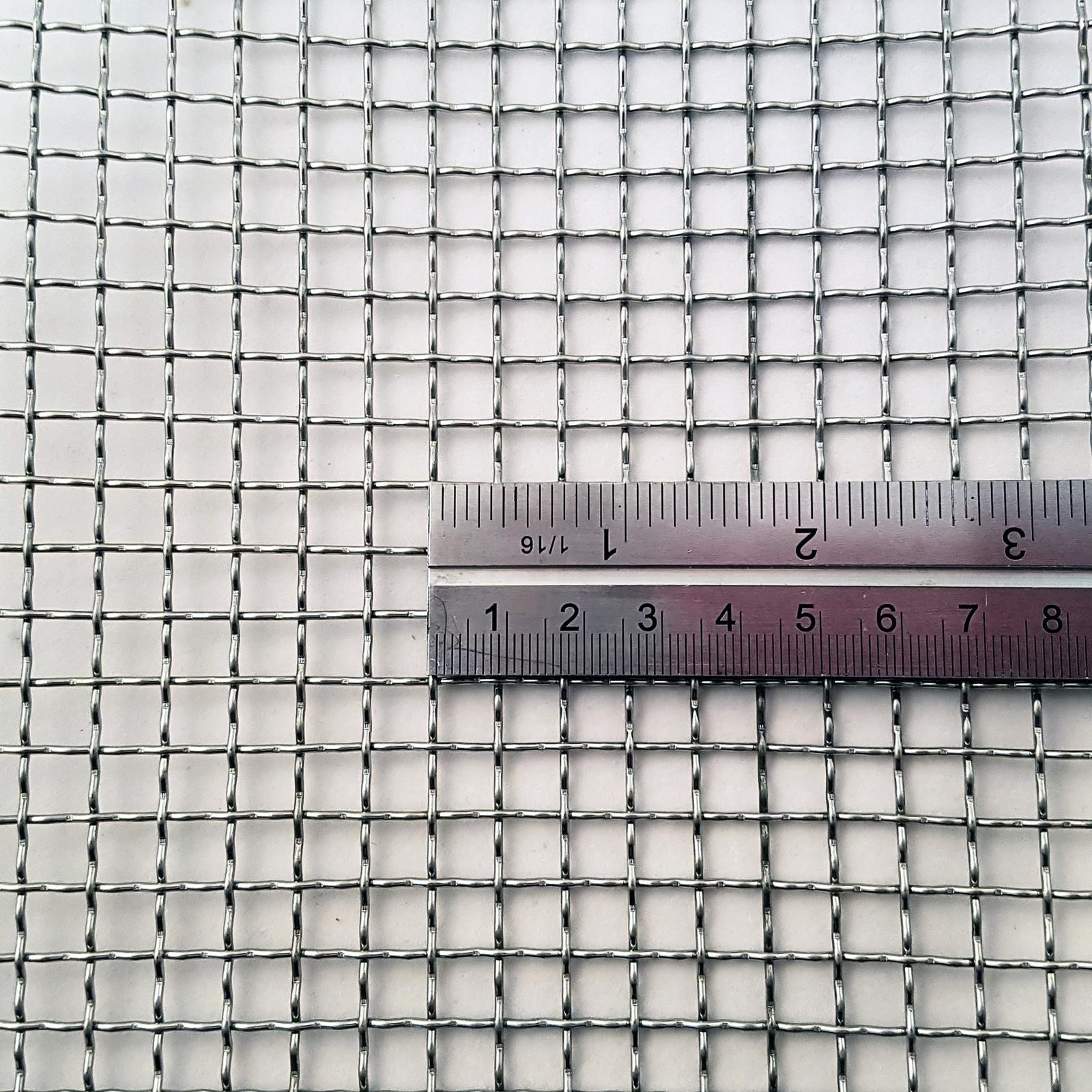

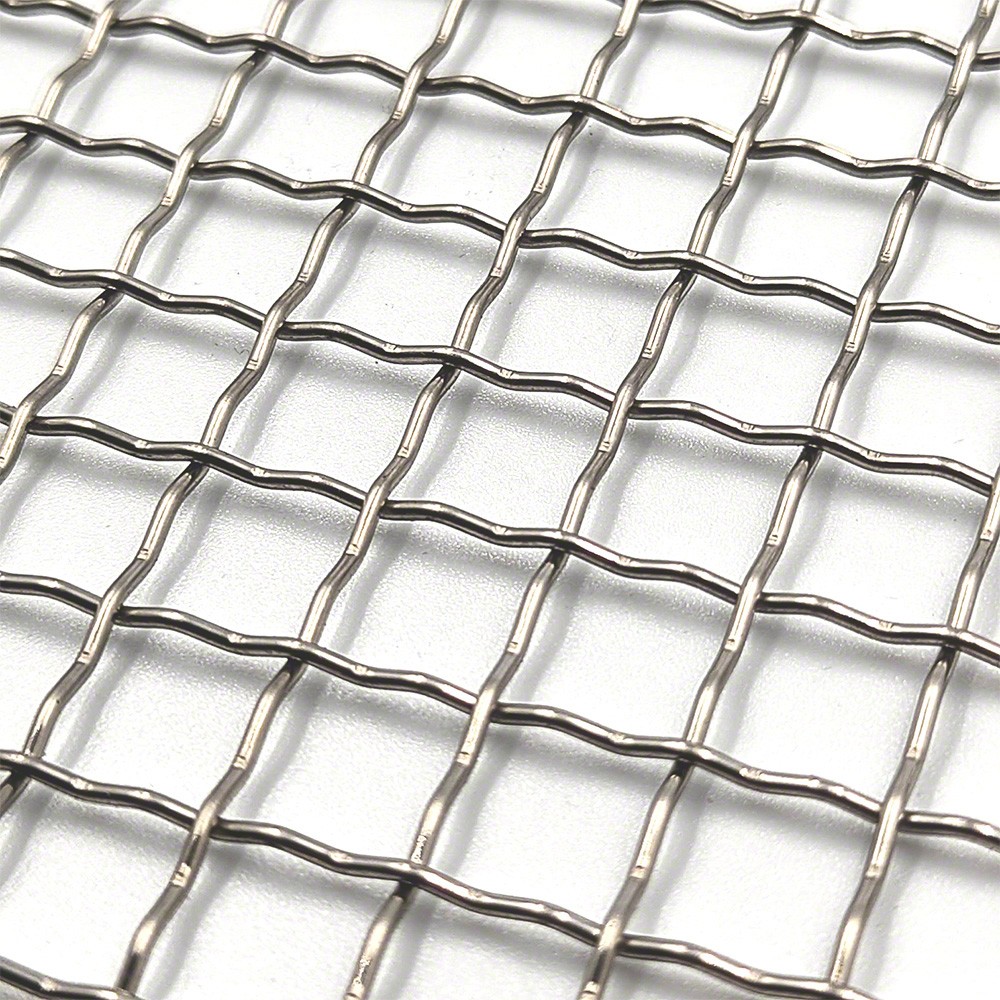

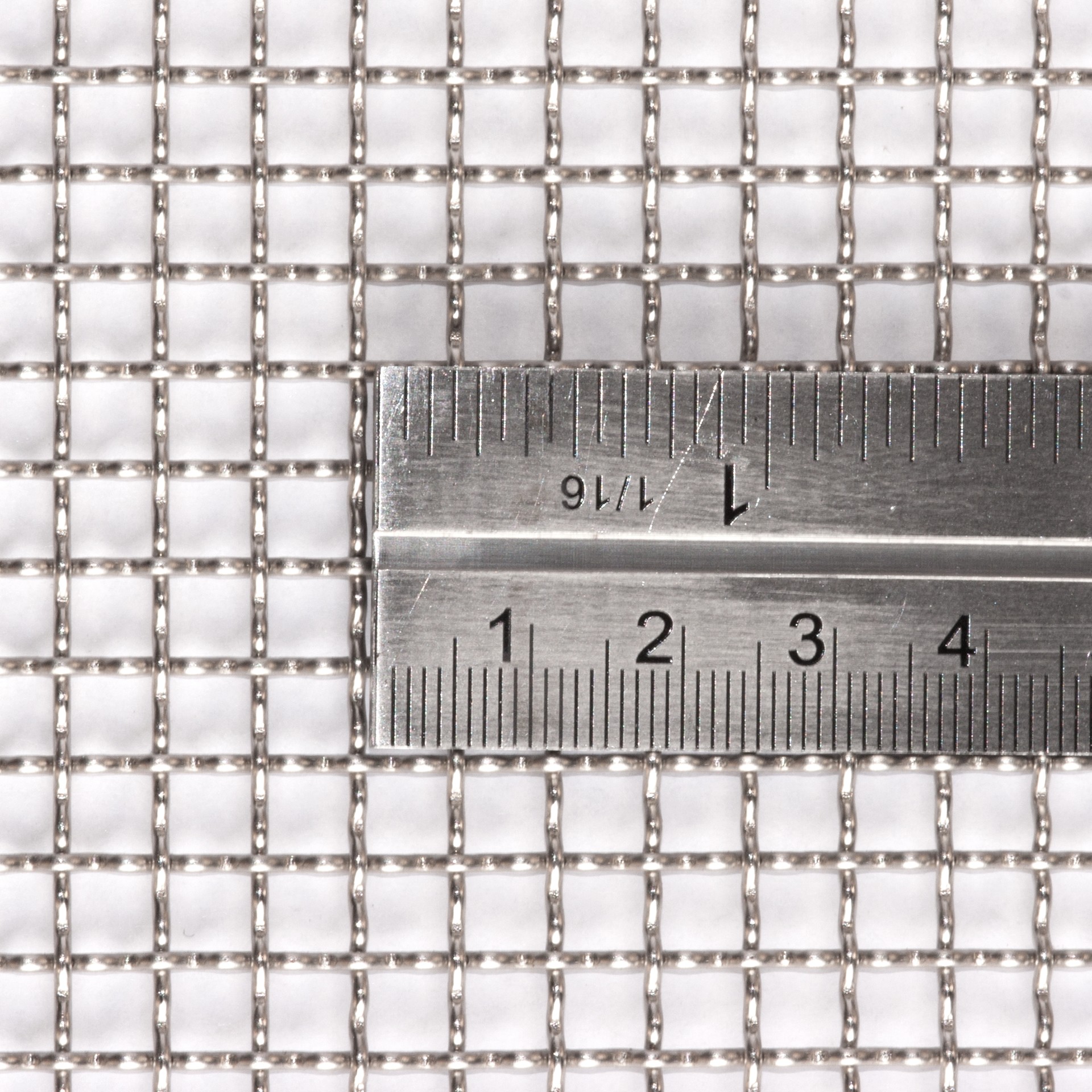

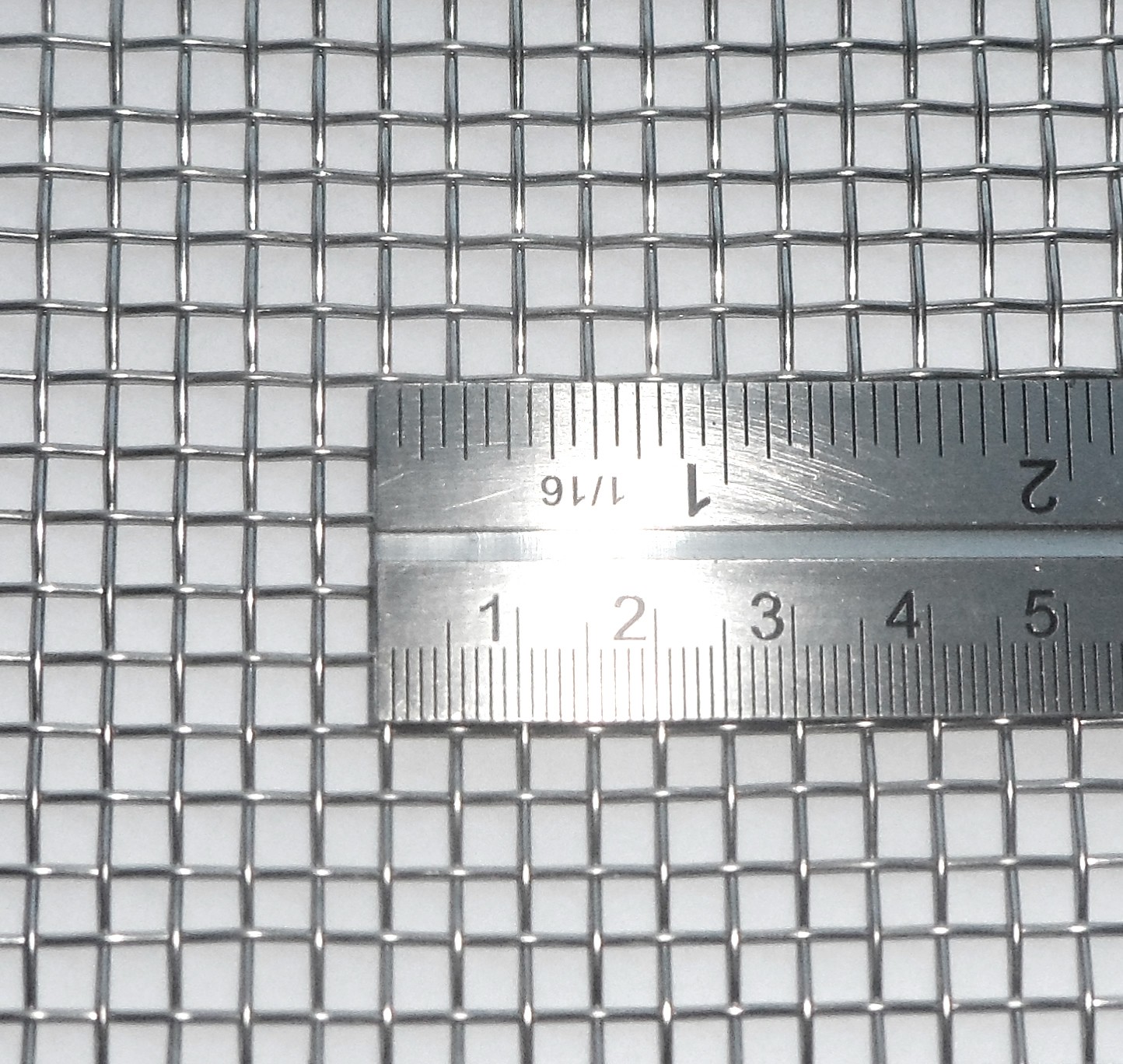

crimped woven wire mesh

Crimped woven wire mesh is made of high quality is a manufacturing in Ferrous & Non Ferrous Metal . It has various weaving method, such as the double crimped, flat top crimped, intermediate crimped and lock crimped. The crimped woven wire mesh has square opening and rectangle opening, which has different wire diameters and applications. The pre-crimped weaving method can assure the accurate open area and make the structure stability and smooth. The crimped woven wire mesh has various applications. The heavy duty crimped woven wire cloth can be used as vibrating screen in the mining, coal, crusher and other industries. The light crimped woven wire mesh with thinner wire diameter and small opening size can be used as Grilled Wire mesh, pig feeding, protective fences for the equipment and stairs.

Product name:	Crimped Woven Wire Mesh
Material:	Iron wire, steel wire, stainless steel wire, electro-galvanized wire, hot dipped galvanized wire, PVC coated wire etc.
Wire diameter:	0.3mm-18mm
Hole size:	1.5mm-100mm
Width:	1m, 1.5m, 2m, etc.
Length:	2m, 3m, 15m, 30m, etc.
Weaving type:	Plain crimped, Double lock crimped, lock crimped, flat top crimped.

Mesh	Open Area		Wire Diameter		Weaving methods
Mesh	inch	mm	Max（mm）	Min（mm）	Weaving methods
4"	4	101.6	12.7	6	Intercrimp/Lock
3"	3	76.2	12.7	5	Intercrimp/Lock
2"	2	50.8	10	4	Intercrimp/Lock
1 1/2"	2	38.1	10	3	Intercrimp/Lock
1X2"	1X2	25.4X50.8	8	2.5	Intercrimp/Lock
1"	1	25.4	8	2	Plain /Intercrimp
3X4"	0.75	19.05	6	1.8	Plain /Intercrimp
5X8"	0.62	15.8	5	1.5	Plain /Intercrimp
2	0.5	12.7	4	1	Plain /Intercrimp
3	0.33	8.46	3	1	Plain /Intercrimp
4	0.25	6.35	2	0.8	Plain /Intercrimp
5	0.2	5.08	1.6	0.7	Plain /Intercrimp
6	0.17	4.23	1.5	0.6	Plain /Intercrimp
8	0.12	3.17	1.2	0.7	Plain /Intercrimp
10	0.1	2.54	1	0.6	Plain
12	0.08	2.11	0.9	0.5	Plain
14	0.07	1.81	0.7	0.5	Plain
16	0.06	1.58	0.6	0.5	Plain
18	0.056	1.41	0.6	0.5	Plain
20	0.05	1.27	0.58	0.5	Plain

Applications: crimped wire mesh can be used in mine, construction, petroleum, chemical, ocean industry, Stadium, green fence, river, breeding, residential security and Food Industry etc.

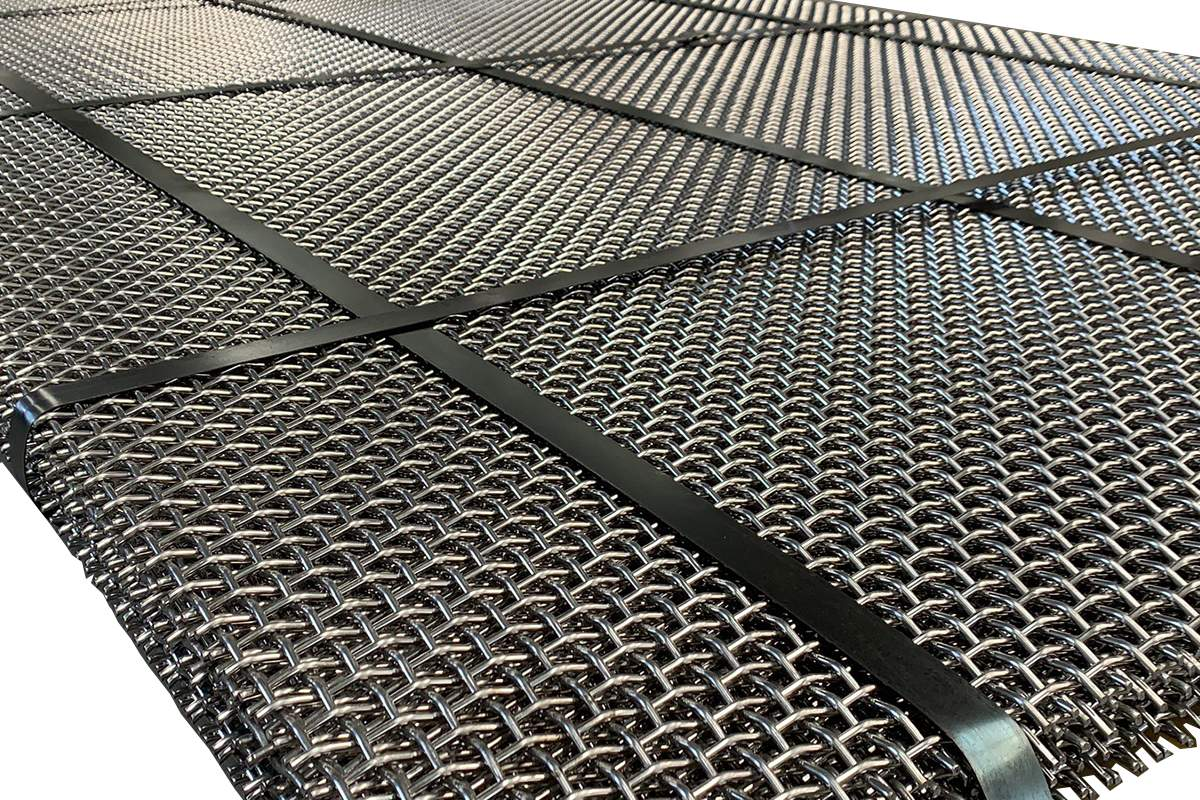

Crimped Wire Mesh, Plain Weave(Double Crimp)

Material:High Tensile Steel, High Carbon Steel, Lead Patented Steel, Low Carbon Steel, Stainless Steel, Galvanized Steel etc;
Wire Diameter Range: 0.5--12.7mm;
Aperture Size Range: 1--180mm;

Plain Weave Crimped Wire Mesh.png

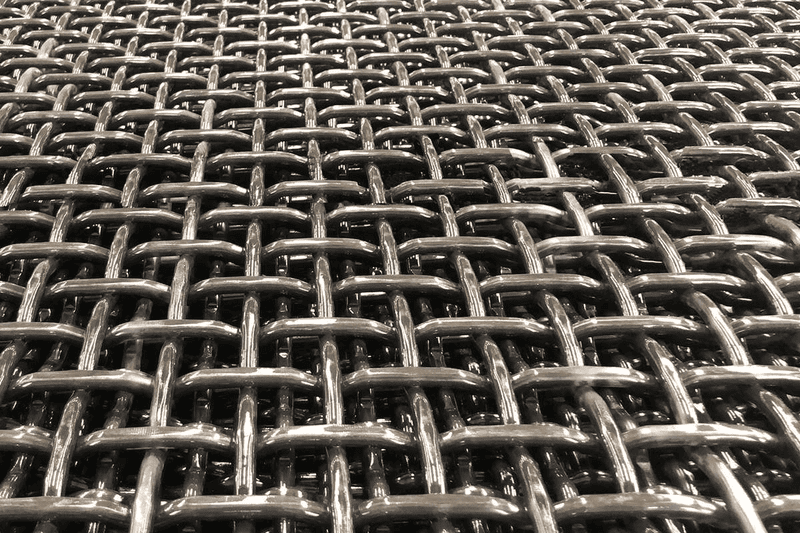

Crimped Wire Mesh, Flat Top

Material:High Tensile Steel, High Carbon Steel, Lead Patented Steel, Low Carbon Steel, Stainless Steel, Galvanized Steel etc;

Wire Diameter Range: 4--12.7mm;

Aperture Size Range: 8--180mm;

Flat Top Crimped Wire Mesh.png

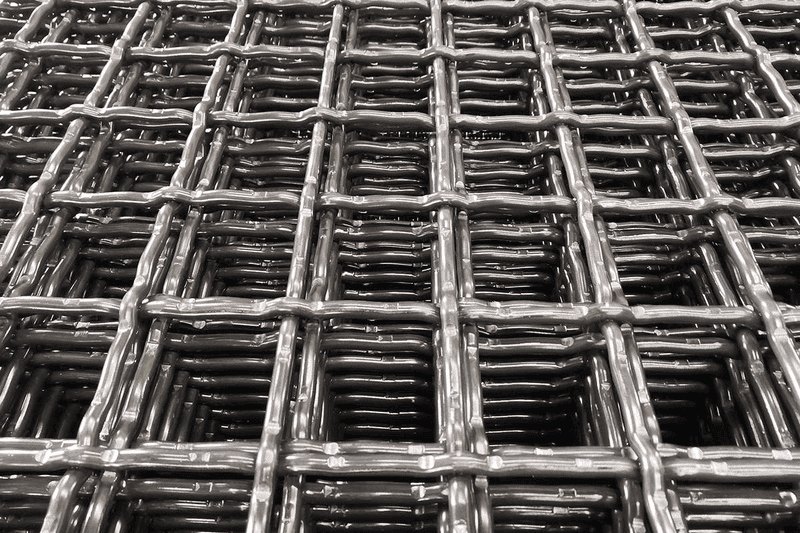

Crimped Wire Mesh, Lock Crimp

Material:High Tensile Steel, High Carbon Steel, Lead Patented Steel, Low Carbon Steel, Stainless Steel, Galvanized Steel etc;
Wire Diameter Range: 1.6--12.7mm;
Aperture Size Range: 4.8--180mm;

Lock Crimped Wire Mesh,.png

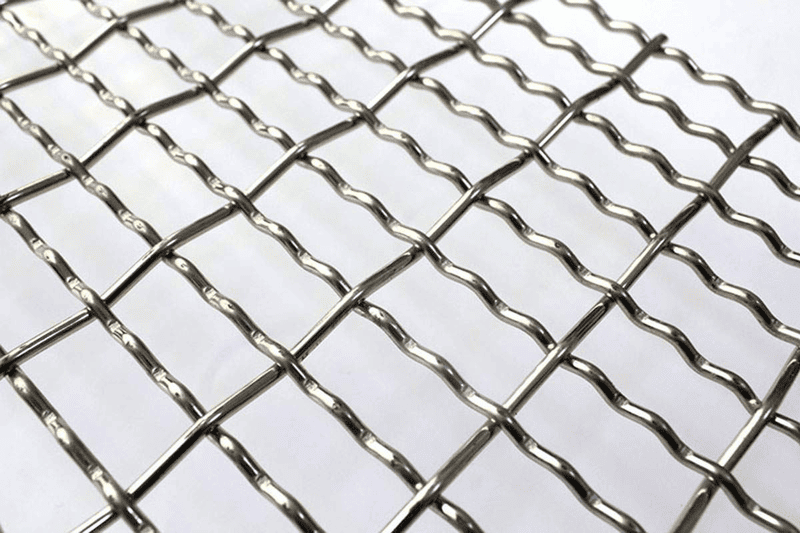

Crimped Wire Mesh, Intermediate Crimp

Material:High Tensile Steel, High Carbon Steel, Lead Patented Steel, Low Carbon Steel, Stainless Steel, Galvanized Steel etc;
Wire Diameter Range: 1--12.7mm;
Aperture Size Range: 2--180mm;

Intermediate Crimped Wire Mesh, .png

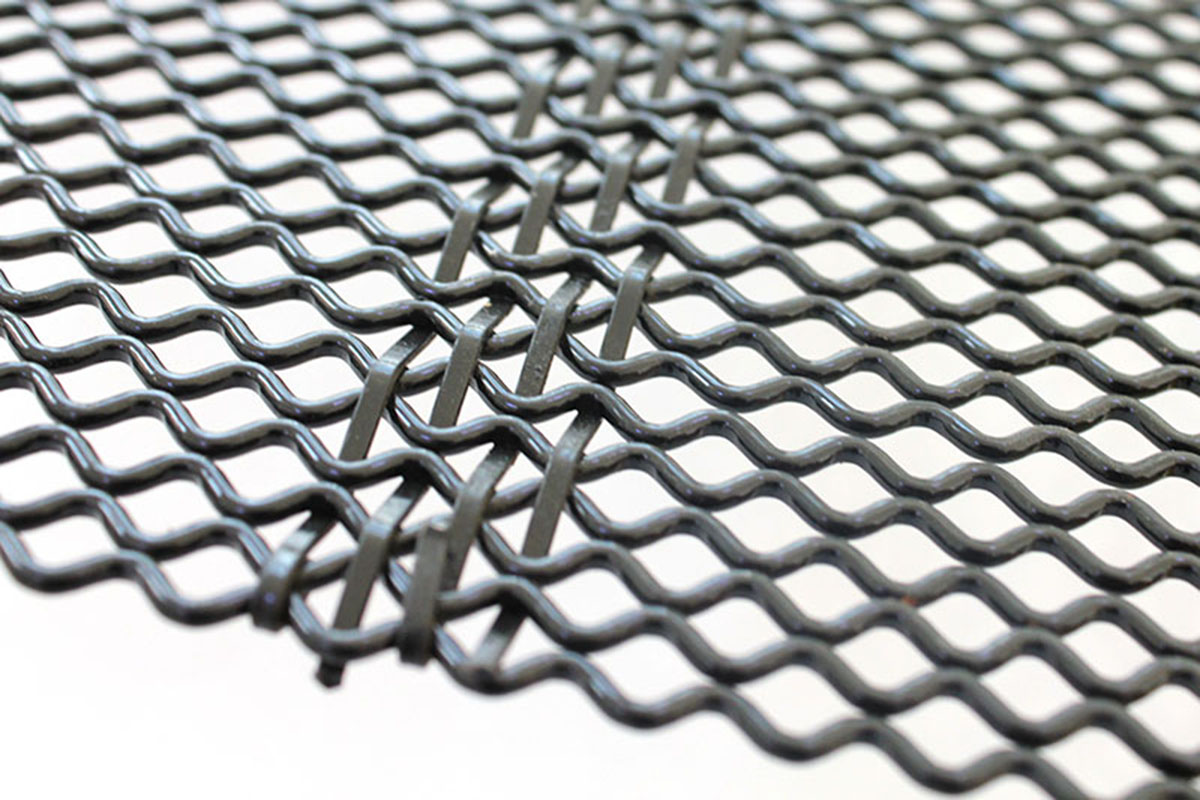

Self Cleaning (Anti clogging) Wire Mesh,Wire Ripple Type

Material:High Tensile Steel, High Carbon Steel, Lead Patented Steel, Low Carbon Steel, Stainless Steel, Galvanized Steel etc;
Wire Diameter Range: 1.6--6.0mm;
Weaving Types: D Type, T Type and H Type

Self Cleaning (Anti clogging) Wire Mesh.png

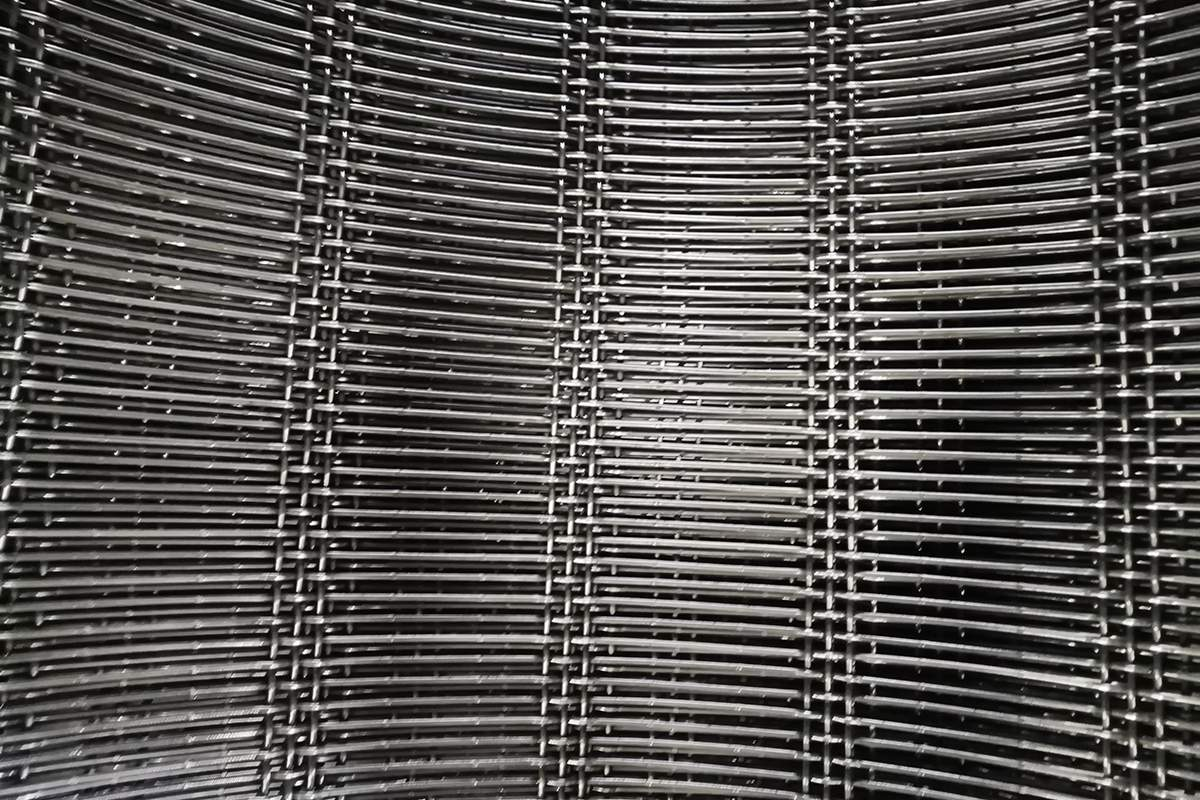

Long Slot Triple Shute Wire Mesh

Material:High Tensile Steel, High Carbon Steel, Lead Patented Steel, Low Carbon Steel, Stainless Steel, Galvanized Steel etc;
Wire Diameter Range: 1--12.7mm;
Aperture Size Range: 2--180mm;

Long Slot Triple Shute Wire Mesh.png

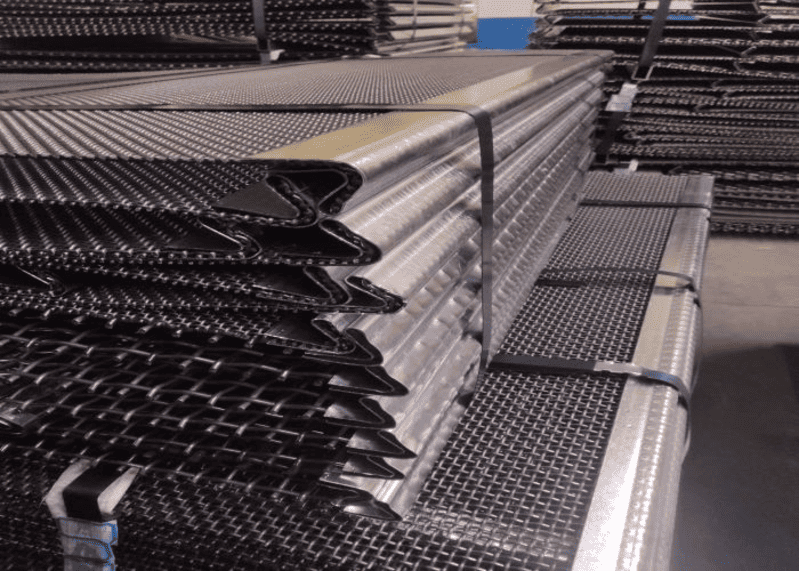

Screen Mesh With Hook

Material:High Tensile Steel, High Carbon Steel, Lead Patented Steel, Low Carbon Steel, Stainless Steel, Galvanized Steel etc;
Wire Diameter Range: 1--12.7mm;
Aperture Size Range: 2--180mm;

Screen Mesh With Hook.png
