Galvanized Chain Wire Mesh

Chain wire fencing, also known as chain-link, chain-mesh, diamond-wire-mesh or cyclone fencing, Galvanized Chain Link Wire Mesh is manufactured from high-quality hot-dip galvanized wire or electro-galvanized wire for long-lasting corrosion resistance.
It is an extremely economical and versatile fencing style.

Hot Dip Galvanized Chain Link Fence Mesh Roll | Custom Chain Wire Mesh Manufacturer China

It is an extremely economical and versatile fencing style

It is widely used for residential fencing, commercial security, sports fields, farms, industrial facilities, parks, schools, highways, and construction sites.

Specifications

Item	Specification
Material	Low Carbon Steel Wire
Surface Finish	Hot-Dip Galvanized / Electro Galvanized
Wire Diameter	2.0–5.0 mm
Mesh Opening	40×40 mm, 50×50 mm, 60×60 mm, 75×75 mm
Roll Height	0.9–3.6 m
Roll Length	10 m, 15 m, 20 m, 25 m, 30 m

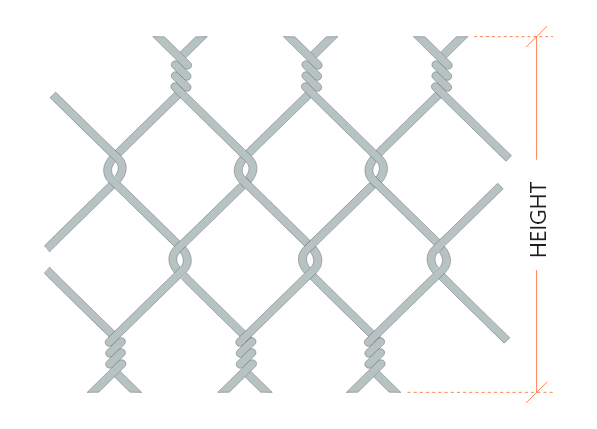

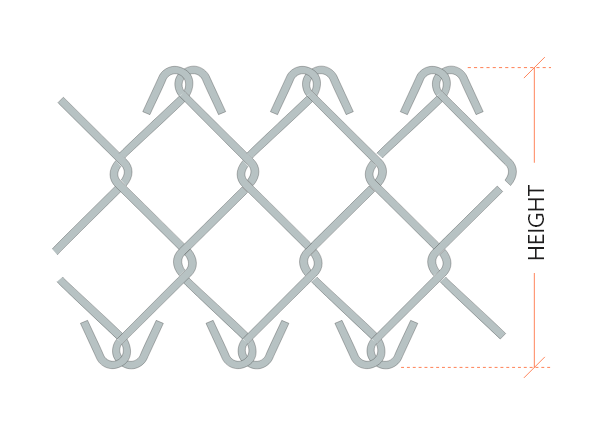

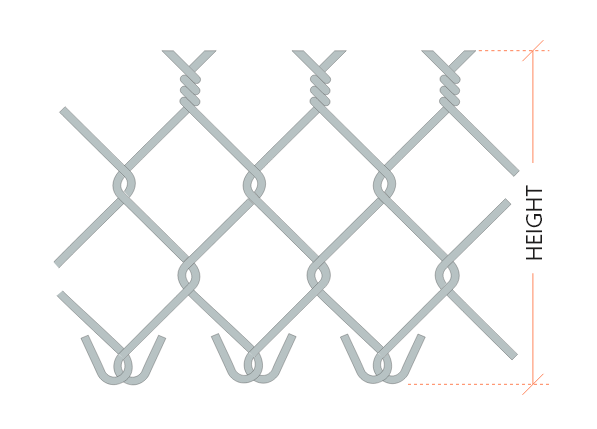

Edge Type	Knuckled-Knuckled (KK), Knuckled-Barbed (KB), Barbed-Barbed (BB)


Barbed-Barbed (BB)	Knuckled-Barbed (KB)	Knuckled-Knuckled (KK)

**Chain link fences with zinc (Z) or zinc alloy (ZA) coated mesh**
Items	Steel post with zinc, zinc alloy coating	Posts height (m)	Pattern	Chain link fencing			Line wires (3 rows line wires)			Suitable uses
				Roll width (m)	Size mesh (mm)	Wire diameter (mm)	Spacing (mm)	Nominal diameter
				Roll width (m)	Size mesh (mm)	Wire diameter (mm)	Spacing (mm)	Low carbon mild steel (mm)	High tensile Steel (mm)
GC-90 GC-90A	90 90A	0.90 0.90	Medium Heavy	0.90 0.90	50 50	2.50 3.00	430 430	3.00 3.55	3.15 3.15	House garden fronts and divisions
GC-120 GC-120A	120 120A	1.20 1.20	Heavy Extra heavy	1.20 1.20	50 50	3.00 3.55	580 580	3.55 4.00	3.15 3.15	Playgrounds, general purposes
GC-140 GC-140A	140 140A	1.40 1.40	Medium Heavy	1.40 1.40	50 50	2.50 3.00	680 680	3.00 3.55	3.15 3.15	General purposes, railways, house garden flanks, highways
GC-140B	140B	1.40	Extra heavy	1.40	50	3.55	680	4.00	3.15	Playing fields, recreation grounds
GC-140C GC-140C	140C 140D	1.40 1.40	Medium Heavy	1.40 1.40	40 40	2.50 3.00	680 680	3.00 3.55	3.15 3.15	Railways, general purposes
GC-180 GC-180A	180 180A	1.80 1.80	Heavy Extra heavy	1.80 1.80	50 50	3.00 3.55	880 880	4.00 3.00	3.15 3.15	Commercial property
GC-180B	180B	1.80	Heavy	1.80	40	3.00	880	3.55	3.15	Railways, general safety
GC-180C GC-180D	180C 180D	1.80 1.80	Heavy Extra heavy	1.80 1.80	50 50	3.00 3.55	880 880	3.55 4.00	3.15 3.15	Industrial security
GC-180	180E	1.80	Heavy	1.80	40	3.00	880	3.55	3.15	Railways, general safety
GC-215 GC-215A	215 215A	2.15 2.15	Heavy Extra heavy	2.15 2.15	50 50	3.00 3.55	1055 1055	3.55 4.00	3.15 3.15	Commercial property
GC-215B	215B	2.15	Heavy	2.15	40	3.00	1055	3.55		Railways, general safety
GC-215C GC-215D	215C 215D	2.15 2.15	Heavy Extra heavy	2.15 2.15	50 50	3.00 3.55	1055 1055	3.55 4.00	3.15 3.15	Industrial security
GC-215E	215E	2.15	Heavy	2.15	40	3.00	1055	3.55	3.15	Railways, general safety
Note: Post Heights are of the main infill material, and exclude any ground clearance at the base, or additional height provided by extension arms for barbed wire. Post height more than 1.80 m (include 1.80 m), the top of the fence may be barbed. And the fence shall have cranked extension arms with barbed wire, increasing the height by approx. 340 mm.
